Gradient Hot-Air Drying: The Key to ODF Yield and Stability

In oral dissolvable film (ODF) and transdermal patch manufacturing, the drying process is often underestimated—yet it directly determines product yield, uniformity, and stability. Improper drying may lead to film cracking, curling, bubble formation, or excessive solvent residue, causing quality test failures.

---

Industry Challenges

• Single temperature drying: Excessive heat causes rapid evaporation, sealing the surface layer and trapping moisture or solvent inside the film.
• High energy consumption: Traditional multi-zone electric heating systems consume more energy and are less efficient.
• Poor adaptability: Conventional drying struggles to balance speed and uniformity when dealing with high-viscosity or high-loading formulations.

These issues not only affect production efficiency but also create stability risks during regulatory submission and validation.

---

HUANGHAI’s Solution: Gradient Hot-Air Drying System

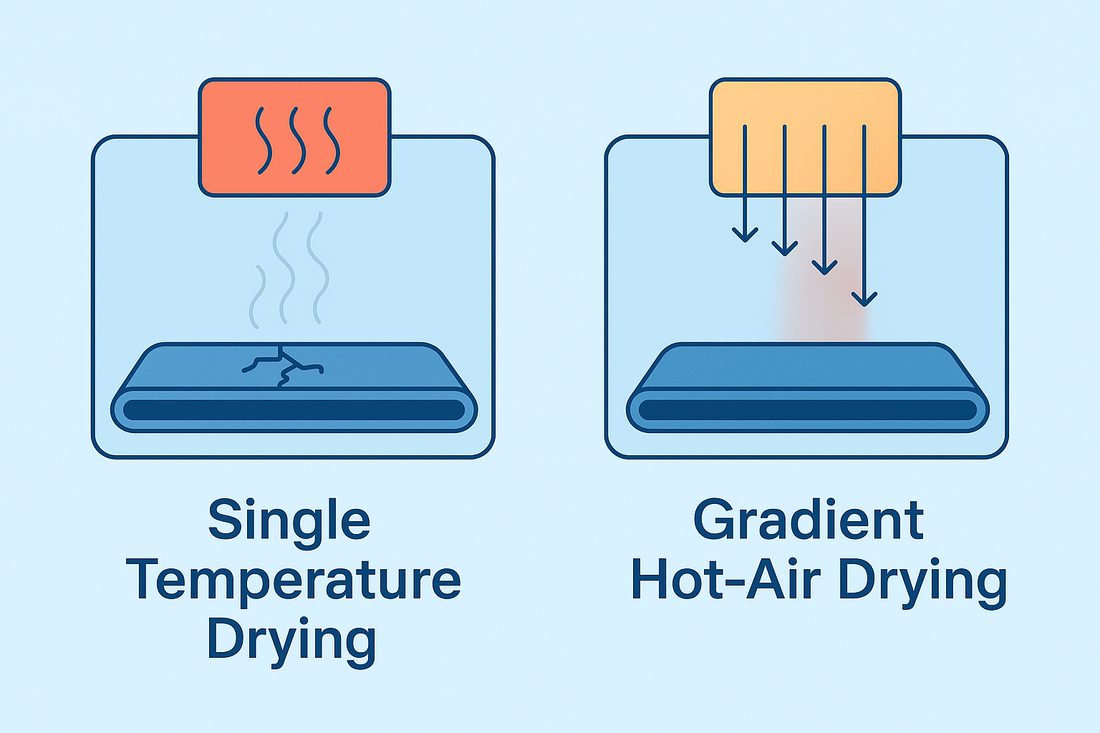

HUANGHAI’s patented gradient drying technology uses natural hot-air convection to create a gradual temperature rise, eliminating the need for complex segmented heating systems.

• Progressive temperature control: Gentle evaporation at the front stage prevents surface sealing.
• Uniform shrinkage: Gradually higher temperatures toward the end ensure internal moisture escapes smoothly.
• Energy efficiency: Simplified design minimizes energy consumption without compromising drying performance.
• Improved yield: Prevents bubbles, cracks, and residual solvent issues—ensuring higher first-pass quality rates.

This design is especially suitable for high-viscosity formulations and large-scale production, offering greater stability and economic advantages during process scale-up.

---

Patent Support

This drying technology is protected under the Chinese Patent CN119869871A, published on Google Patents:

View CN119869871A Patent on Google Patents

---

Recommended Equipment

• MJ150-L ODF Coating Machine – Pilot & medium-scale production
• MJ150 ODF Coating Machine – Commercial-scale production

---

Conclusion

Drying is not merely heating—it’s a critical control step for ensuring product consistency and GMP compliance. HUANGHAI’s natural hot-air gradient drying system achieves higher yield and stability with lower energy costs, supporting both ODF and transdermal patch manufacturing.

*Features Huanghai's exclusive patented hot-air drying technology (Patent No. CN201668734U) ensuring uniform bottom-up heating.

---

Frequently Asked Questions

Q: What is the difference between an ODF film and a transdermal patch?

A: Oral Dissolving Films (ODF) are placed on or under the tongue and dissolve within seconds to minutes, delivering APIs directly through the oral mucosa or via swallowing. Transdermal patches adhere to the skin and deliver APIs through the dermal layers into systemic circulation over hours to days. Despite different delivery routes, both are manufactured using similar solvent-cast film coating processes. Huanghai's MJ150 ODF machine supports both applications on a single platform with approximately 2 working days of changeover time.

Q: What production output can I expect from a Huanghai ODF machine?

A: The MJ150 produces 20,000 films/hour at commercial scale. The MJ150-L targets R&D and pilot production at 8,000–10,000 films/hour. For fully integrated lines, pair either machine with the MJF180 automatic cutting and packaging system (11,900 films/hr) or the more affordable EZ320 (9,000 films/hr). A complete MJ150 + MJF180 line can produce over 150 million finished pouches annually on a single-shift basis. Contact us for pricing and configuration details.

Q: What drying technology does Huanghai use for ODF production?

A: Huanghai uses patented gradient hot-air drying (Patent CN201668734U), which applies a smooth progressive temperature drop rather than stepwise oven zones used by competitors. This results in more uniform film thickness, reduced edge curl, and better API distribution across the film web. An optional far-infrared heating module adds 20–30% drying efficiency for solvent-based formulations. This patented drying system is one of the key technical advantages that justifies Huanghai's position as the preferred ODF equipment supplier to Sinopharm, Shanghai Pharma, and Fosun Pharma.

Q: What are the GMP requirements for ODF production equipment?

A: ODF manufacturing equipment must comply with cGMP (21 CFR Parts 210/211) for US market products, and equivalent standards (EU GMP Annex 1, ChGMP) for other markets. Key requirements: material contact surfaces must be 316L stainless steel or equivalent; CIP/SIP capability or documented cleaning validation; data integrity controls meeting ALCOA+ principles (audit trails, access control). Huanghai ODF machines meet these standards—all product contact surfaces use pharmaceutical-grade materials, and the control system includes operator access logs and parameter change records. Request our GMP compliance documentation.

Q: Can Huanghai machines produce stripe-coated or multi-formula ODF films?

A: Yes. Huanghai holds a patent for multi-formula stripe coating (Patent CN117323228A), enabling two different API formulations to be applied side-by-side in a single coating pass. This eliminates the need for multiple coating/drying cycles when producing combination-drug ODF products. Competitors require manual multi-layer coating with drying intervals between each formula. This capability is particularly valuable for fixed-dose combination products (e.g., dual-API ODFs for cardiovascular or CNS indications) where coating efficiency directly impacts production economics.
