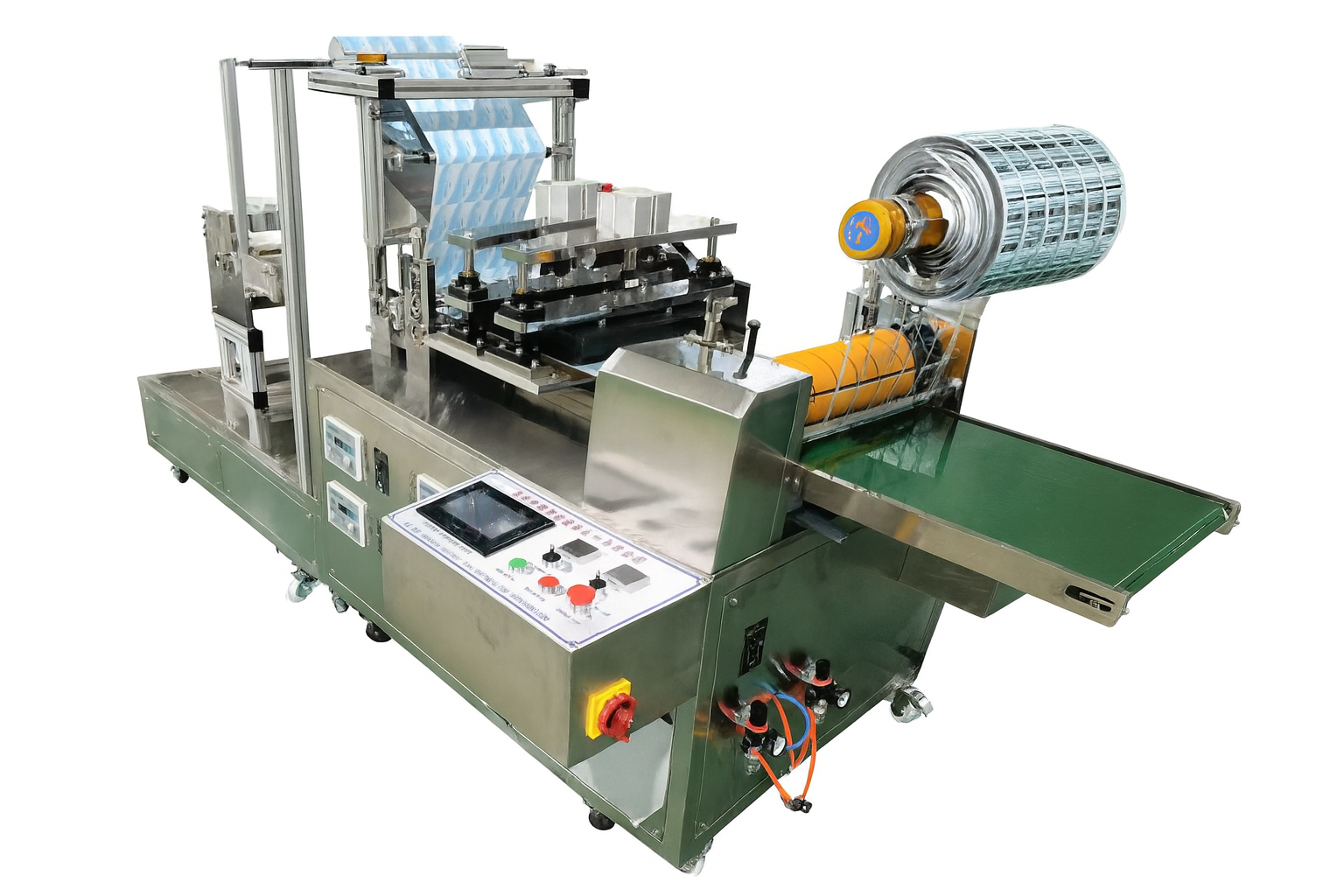

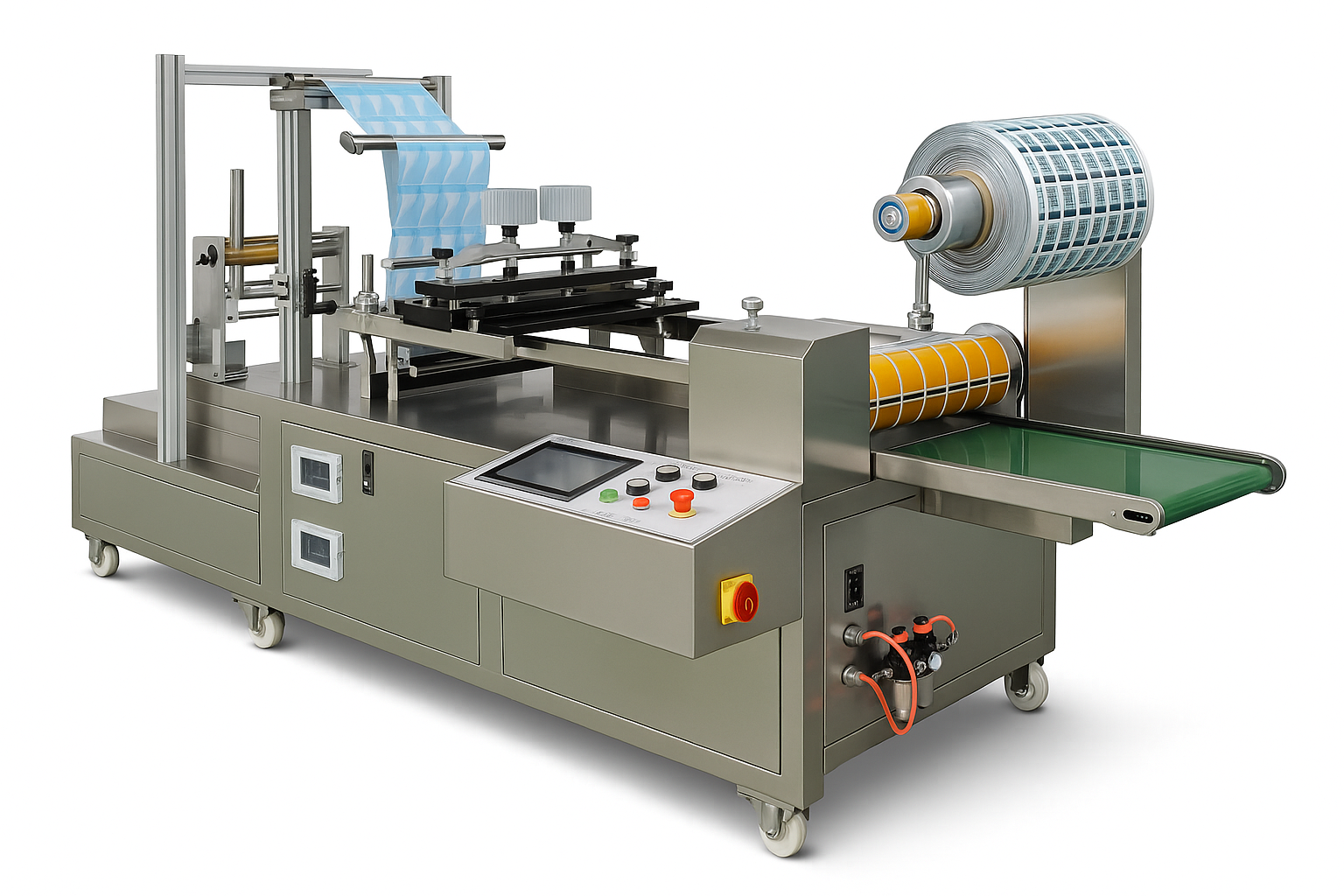

EZ320 ODF Film Cutting and Packaging Machine

Key Features

1. Uniquely designed bag-making mechanism allows printing on both sides of each pouch with precise alignment.
2. Direct membrane-to-pouch system ensures reliable transfer after slicing without intermediate transport issues.
3. Advanced continuous flat pressing heat-sealing mechanism with adjustable dwell time ensures excellent seal quality and broader material compatibility.
4. Open and visible mechanical design makes maintenance and troubleshooting easier.
5. Equipped with PLC controller and proprietary software system. Servo-driven operations for feeding, film pulling, sealing, and cutting ensure precision and stability.
6. Integrated longitudinal film cutting system for inline slicing.

Workflow

Film roll loading → Longitudinal slitting → Transverse cutting → Direct pouch insertion → Easy-tear pouch forming → Sealing → Final pouch cutting → Product output

Technical Specifications

Configuration & Components

A. Electrical Components

1. Color touchscreen (Xinje TG765G-UT)
2. Programmable logic controller (Xinje XD5-48T6)
3. 5 Servo motors (Xinje MS6S-80CS30B1-20P7)
4. 5 Servo drivers (Xinje DS5L-20P7-PTA)
5. Color mark positioning system (GDJ612(N)W/R, Shanghai Yatai)
6. Discharge motor (41K25RGN-C, Oubang)
7. Other electrical parts: relays, switches, buttons from Chint Electric

B. Mechanical Frame & Transmission Structure

1. Frame made of 40 × 40 × 2 mm 304 stainless steel square tubing.
2. Protective cover made from 1.2 mm thick 304 stainless steel sheet.
3. ODF film traction roller made of 316L stainless steel.
