From ОРД RD to Commercial Manufacturing: A Complete Scale-Up Guide
Поделиться
Scaling an oral dissolving film (ОРД) formulation from лаборатория pilot to commercial production is where most projects stall — not because the formulation fails, but because the manufacturing process was never designed for scale. The MJ150-Lab ОРД Film Coating Machine was built specifically to close this gap: a pilot-scale platform that runs the same validated process as the MJ150 commercial coating machine, so the transition from R&D to production is a capacity decision, not a process redesign.
This guide covers every stage of the ОРД scale-up journey — from formulation qualification and process parameter lock-in at pilot scale, through line configuration for commercial output, to cGMP and FDA 21 CFR Part 11 соответствие requirements that govern regulated pharma ОРД manufacturing.
Why ОРД Scale-Up Fails: The Core Process Mismatch Problem

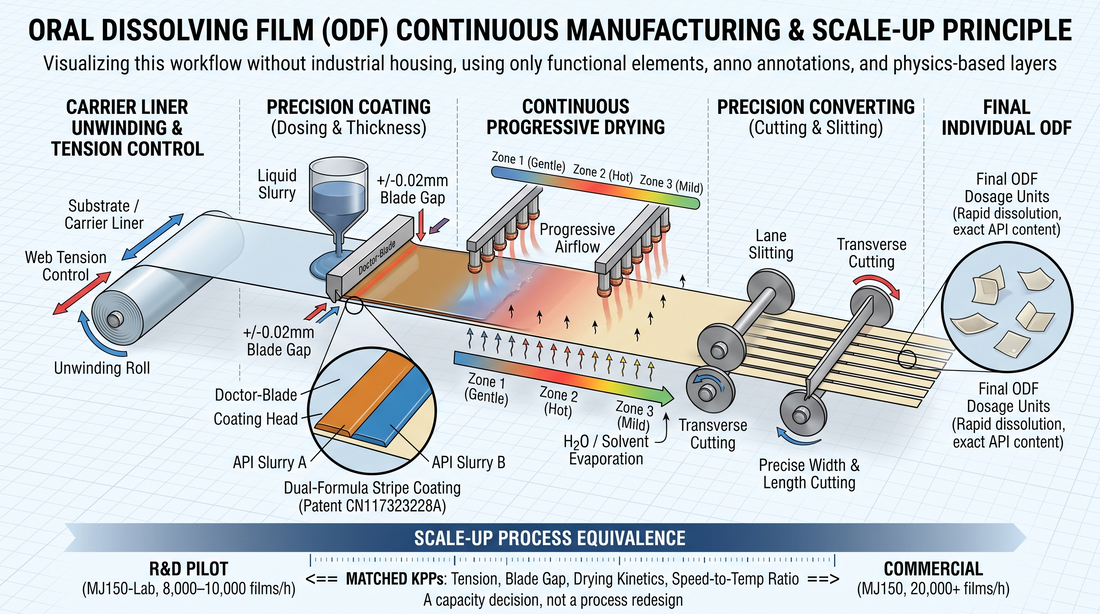

The central challenge in ОРД scale-up is not throughput — it is process equivalence. Labs commonly begin development on bench-top coating equipment with manual doctor-blade application, fixed drying temperatures, and batch sizes of a few hundred milliliters. When this process is transferred to a continuous roll-to-roll coating machine at commercial scale, several critical parameters diverge:
- Drying kinetics: A static bench-top oven applies heat uniformly to a stationary film. A continuous coating machine drives the film at a controlled speed through a heated drying tunnel — the relationship between line speed, tunnel temperature profile, and residual moisture is fundamentally different and must be re-characterized.
- Coating uniformity: Manual blade application cannot reproduce the ±0.02 mm thickness consistency achievable with automated precision coating. Drug content uniformity (DCU) data generated on bench equipment is not directly transferable.
- Substrate tension: Roll-to-roll processing introduces web tension as a variable that directly affects film flatness and final strip dimensions. Bench processes have no equivalent.
The correct approach is to validate key process parameters (KPPs) — line speed, drying zone temperatures, coating weight, blade gap — on the same continuous platform that will be used at commercial scale, at reduced throughput. This is the design logic of the MJ150-Lab.
Stage 1: Pilot Scale — Locking In Process Parameters
The MJ150-Lab is configured identically to the MJ150 commercial machine in all process-critical dimensions: the same patented hot-air drying tunnel (patent CN201668734U), the same doctor-blade precision coating mechanism, and the same Siemens PLC control platform with FDA 21 CFR Part 11-compliant electronic records and electronic signatures.
Output capacity: 8,000–10,000 films/hour (based on 15mm strip specification), compared to 20,000 films/hour for the MJ150.
Process parameters validated at pilot scale that transfer directly to commercial scale:
- Drying zone temperature profiles (progressive hot-to-mild gradient, multiple independently controlled zones)
- Line speed and its relationship to drying completeness and residual moisture
- Coating weight (g/m²) and its relationship to final strip drug content
- Doctor-blade gap setting and resulting film thickness (target tolerance ±0.02 mm)
- Slurry feed rate and viscosity operating range
Because the MJ150-Lab uses the same hot-air tunnel architecture as the MJ150, drying kinetics data is directly comparable between the two machines. The primary scale-up variable becomes coating speed — the commercial machine operates at higher throughput, but within the same validated temperature-speed design space established at pilot scale.
cGMP and 21 CFR Part 11 соответствие at pilot scale:
The MJ150-Lab is cGMP-compliant and supports FDA 21 CFR Part 11 electronic records and electronic signatures. This means batch records generated during pilot validation — including process parameter logs, electronic operator sign-offs, and журнал аудита entries — are in the same format as commercial batch records. This is a significant regulatory advantage: it eliminates the need for a separate paper-based pilot data package when compiling the manufacturing section of a regulatory submission.
Stage 2: Process Qualification and the Multi-Formula Advantage
For фармацевтический ODFs incorporating multiple active фармацевтический ingredients (APIs) in a fixed-dose combination (FDC) or layer-sensitive formulation, стандарт sequential coating — applying one formulation layer, drying, then applying a second — introduces additional process variables and reduces manufacturing efficiency.
Huanghai's patented multi-formula stripe coating technology (patent CN117323228A) enables up to 2 formulations to be applied simultaneously in a single coating pass, with independently controlled feed grooves and adjustable stripe width ratios. The validated benefits:
- Eliminates the inter-layer drying step for dual-formula products
- Maintains exact API ratios per strip through independent feed rate control
- Reduces raw material waste by 20–30% vs. sequential multi-layer coating
- Reduces total processing time for FDC ОРД products
This capability is available on both the MJ150-Lab (for process development) and the MJ150 (for commercial production), ensuring that multi-formula process parameters developed at pilot scale transfer directly.
Comparison: Single-Formula vs. Multi-Formula Coating Process
| Parameter | Single-Formula стандарт Coating | Dual-Formula Stripe Coating (CN117323228A) |
|---|---|---|
| Passes required for 2-API ОРД | 2 (coat + dry cycle × 2) | 1 (simultaneous) |
| Inter-layer drying step | Required | Not required |
| API ratio control | Post-process mixing only | Independent feed rate per stripe |
| Material waste | Higher (inter-layer overlap) | 20–30% lower |
| DCU risk factor | Alignment error between layers | Feed rate consistency per channel |
| Best for: | Simple single-API ОРД, well-established formulation | FDC drugs, layer-sensitive APIs, high-value materials |
Stage 3: Commercial Scale Equipment Configuration
Once process parameters are locked at pilot scale and ОРД strip quality has been qualified against your product specification, the commercial production line is configured around the MJ150 coating machine as the primary unit operation.
MJ150 Commercial Coating Machine — Key Specifications:
- Output capacity: 20,000 films/hour (стандарт; upgrade path available to higher throughput)
- Hot-air drying tunnel: patented progressive temperature gradient (CN201668734U), optional far-infrared heating enhancement for 20–30% additional drying efficiency
- Coating platform: same doctor-blade precision coating as MJ150-Lab — no process revalidation required for coating parameters
- соответствие: cGMP + FDA 21 CFR Part 11 (electronic records, electronic signatures, журнал аудита)
- Electrical components: Siemens PLC, Siemens sensors, Siemens electrical
Downstream line integration — MJ180 Auto Cutting and Packaging Machine:
The MJ180 connects directly to the MJ150, automating the complete sequence from film roll transfer through slitting, cutting, heat sealing, one-object-one-code printing, and package rejection detection.
- Output capacity: 11,900 films/hour
- Key automated functions: film slitting, non-residue film cutting, film length detection, heat sealing, code printing, code scanning, package rejection detection
- соответствие: cGMP + FDA 21 CFR Part 11
- Electrical components: Siemens PLC, Siemens sensors, thickened stainless steel main structure, sterile dustproof enclosure included
Complete Production Line Architecture:
| Stage | Unit Operation | Equipment |
|---|---|---|
| Slurry Preparation | Mixing and defoaming | Slurry vessel (SUS316L GMP contact parts) |
| Film Coating | Continuous roll-to-roll coating + drying | MJ150 (commercial) or MJ150-Lab (pilot) |
| Cutting & Packaging | Slitting, cutting, heat sealing, printing | MJ180 (auto) or EZ320 (manual) |
| Secondary Packaging | Cartoning (optional) | EZB50 or ZMJ-ZH |
| Best for: | High-volume pharma/supplement ОРД production | Regulated GMP environments requiring full automation and integrated packaging |
Stage 4: Regulatory Validation — URS Through PQ
For фармацевтический-grade ОРД production under FDA, EMA, or equivalent regulatory frameworks, the equipment qualification sequence follows IQ → OQ → PQ. Huanghai's ОРД equipment is designed to support this process:
Installation Qualification (IQ):
- Equipment identity and configuration verified against URS (User Requirements Specification)
- Siemens PLC software version documented
- 21 CFR Part 11 system configuration (user accounts, access controls, electronic signature settings) verified
- Contact parts material confirmation (SUS316L for slurry vessel; food-grade/фармацевтический-grade surfaces on coating machine)
Operational Qualification (OQ):
- Temperature zone accuracy: each drying zone calibrated to setpoint across the operational range
- Line speed accuracy: verified against process specification
- Coating weight reproducibility: confirmed at minimum 3 speeds and 3 coating weights
- 21 CFR Part 11 журнал аудита: verified for all critical process parameters (temperature, speed, batch ID, operator ID)
Performance Qualification (PQ):
- Minimum 3 consecutive production batches at commercial scale
- Drug content uniformity per strip: within specification across full coating width
- Residual moisture: within product specification
- Strip dimension consistency: within specification (length, width, thickness)
Key соответствие advantage of the MJ150/MJ180 platform:
Because the MJ150-Lab and MJ150 share the same process architecture and 21 CFR Part 11-compliant control platform, OQ data generated during pilot-scale qualification can be cross-referenced when completing commercial-scale OQ. This reduces duplication in the validation package and shortens the overall qualification timeline.
Frequently Asked Questions
Q: What is the primary difference between the MJ150-Lab and MJ150 for ОРД scale-up purposes?
A: The MJ150-Lab produces 8,000–10,000 films/hour; the MJ150 produces 20,000 films/hour. Critically, both machines use the same patented hot-air drying tunnel architecture (CN201668734U), the same precision doctor-blade coating mechanism, and the same Siemens PLC control platform with FDA 21 CFR Part 11-compliant electronic records. This means process parameters validated on the MJ150-Lab — drying temperature profiles, line speed, coating weight, blade gap — transfer directly to the MJ150 without requiring re-validation of the coating and drying process itself. The scale-up decision becomes a capacity decision, not a process redesign.
Q: Does the MJ150 production line comply with FDA 21 CFR Part 11?
A: Yes. The MJ150, MJ150-Lab, and MJ180 are all cGMP-compliant and support FDA 21 CFR Part 11 requirements for electronic records and electronic signatures — including audit trails, user access controls, and tamper-evident batch logs. This applies to the Siemens PLC-based control platform on each machine. The 21 CFR Part 11 соответствие is a feature of the equipment control software and electronic recordkeeping system on these ОРД production machines specifically — it is distinct from the фармацевтический тестирование instruments in Huanghai's portfolio, which are designed for use in cGMP-regulated лаборатория environments but have different software architectures.
Q: Can the MJ150 produce both фармацевтический-grade and dietary supplement ODFs?
A: Yes. The MJ150, MJ150-Lab, and MJ180 all support фармацевтический-grade, health supplement-grade, and food-grade ОРД production. The key variable is the formulation and regulatory submission — the equipment platform itself is designed to the highest соответствие tier (cGMP + FDA 21 CFR Part 11), so it can serve all three application categories without line reconfiguration.
Q: What is the difference between the MJ180 and EZ320 for the cutting and packaging stage?
A: The MJ180 (MJ Pro Series) is a fully automatic system that connects directly to the MJ150 coating machine. It outputs 11,900 films/hour and automates the complete sequence: film slitting, cutting, heat sealing, one-object-one-code printing, code scanning, and package rejection detection. It is cGMP + FDA 21 CFR Part 11 compliant. The EZ320 (EZ Film Series) requires manual film roll loading, outputs 9,000 films/hour, and includes a sterile dustproof enclosure — but does not carry the same GMP/21 CFR Part 11 certification as the MJ180. For regulated фармацевтический production, the MJ180 is the стандарт choice. For supplement or food-grade applications at entry-level scale, the EZ320 offers a lower-cost starting point.
Q: When should a company use OEM/contract manufacturing instead of buying an ОРД production line?
A: Contract manufacturing is the correct starting point when the formulation is still under development, the regulatory submission is not yet filed, or initial market volumes do not justify the capital investment in a full production line. Huanghai can arrange GMP-certified ОРД contract manufacturing (FDA, ISO22000, FSSC22000 certified) for pilot batches through to full commercial scale — with the client dealing exclusively with Huanghai throughout. Once volume and regulatory approval milestones are reached, transitioning to in-house production with the MJ150-Lab or MJ150 becomes cost-effective, with Huanghai already serving as the trusted equipment partner. See Huanghai ОРД Contract Manufacturing for details.
Conclusion
For ОРД manufacturers planning a scale-up pathway, the equipment decision made at pilot scale determines the difficulty of every subsequent phase — process transfer, qualification, and commercial validation. Selecting a pilot-scale platform that shares process architecture with the commercial machine converts scale-up from a re-development exercise into a straightforward capacity expansion.
For technical specifications on the MJ150-Lab, MJ150, and MJ180, or to discuss your ОРД production line requirements, contact the Huanghai team or explore the ОРД Film Manufacturing Solutions collection.
