Small-Scale ODF Coating Systems That Meet GMP Standards

In the rapidly evolving field of oral dissolvable films (ODFs), personalized medicine and fast-paced product development are driving demand for small-scale, high-standard production lines. Many companies face challenges such as:

• Producing small volumes during R&D or pilot phases while still complying with regulatory requirements
• Adapting to multi-product, small-batch production models
• Avoiding the high investment costs of large-scale industrial equipment for early-stage formulation work

This is where “small-scale + high-standard” ODF coating equipment delivers exceptional value.

---

Why Small-Scale Lines Still Need GMP Compliance

• Regulatory trend toward batch traceability: GMP requirements for equipment, environment, and records apply regardless of production scale.
• Early-stage data impacts future approvals: Parameters and samples generated during pilot runs are often used for regulatory submissions.
• Supports export and tech transfer: Many clients require GMP-grade equipment even during development to ensure data consistency.

---

Technical Advantages of Small-Scale ODF Coating Systems

The MJ150-L Coating System from HUANGHAI is designed specifically for small-scale ODF production and offers:

• Compact footprint, suitable for laboratory and pilot-scale environments
• Temperature control within ±0.5°C and coating thickness precision of ±0.02 mm
• Fast changeover for multi-product, small-batch manufacturing
• Data export capability for audits and regulatory filings
• Seamless parameter transfer to large-scale industrial equipment

---

Who Should Consider Small-Scale ODF Equipment?

• CRO / CDMO: Offering trial production and formulation development services
• Functional food companies: Pre-registration verification for “Blue Hat” health products
• Innovative pharma companies: Developing pediatric, oncology, and other specialty dosage forms
• Universities / Research institutes: Industrial validation and research conducted in parallel

---

Conclusion

Small production volume does not mean low production standards. Small-scale ODF equipment can still meet stringent GMP requirements, making it essential infrastructure for front-end innovation and clinical research in today’s ODF industry.

The MJ150-L Lab-Scale ODF Coating System is already widely used in R&D platforms and regulatory support projects worldwide, enabling customers to achieve fast compliance with controlled early-stage investment.

*Features Huanghai's exclusive patented hot-air drying technology (Patent No. CN201668734U) ensuring uniform bottom-up heating.

---

Frequently Asked Questions

Q: What is the difference between an ODF film and a transdermal patch?

A: Oral Dissolving Films (ODF) are placed on or under the tongue and dissolve within seconds to minutes, delivering APIs directly through the oral mucosa or via swallowing. Transdermal patches adhere to the skin and deliver APIs through the dermal layers into systemic circulation over hours to days. Despite different delivery routes, both are manufactured using similar solvent-cast film coating processes. Huanghai's MJ150 ODF machine supports both applications on a single platform with approximately 2 working days of changeover time.

Q: What production output can I expect from a Huanghai ODF machine?

A: The MJ150 produces 20,000 films/hour at commercial scale. The MJ150-L targets R&D and pilot production at 8,000–10,000 films/hour. For fully integrated lines, pair either machine with the MJF180 automatic cutting and packaging system (11,900 films/hr) or the more affordable EZ320 (9,000 films/hr). A complete MJ150 + MJF180 line can produce over 150 million finished pouches annually on a single-shift basis. Contact us for pricing and configuration details.

Q: What drying technology does Huanghai use for ODF production?

A: Huanghai uses patented gradient hot-air drying (Patent CN201668734U), which applies a smooth progressive temperature drop rather than stepwise oven zones used by competitors. This results in more uniform film thickness, reduced edge curl, and better API distribution across the film web. An optional far-infrared heating module adds 20–30% drying efficiency for solvent-based formulations. This patented drying system is one of the key technical advantages that justifies Huanghai's position as the preferred ODF equipment supplier to Sinopharm, Shanghai Pharma, and Fosun Pharma.

Q: What are the GMP requirements for ODF production equipment?

A: ODF manufacturing equipment must comply with cGMP (21 CFR Parts 210/211) for US market products, and equivalent standards (EU GMP Annex 1, ChGMP) for other markets. Key requirements: material contact surfaces must be 316L stainless steel or equivalent; CIP/SIP capability or documented cleaning validation; data integrity controls meeting ALCOA+ principles (audit trails, access control). Huanghai ODF machines meet these standards—all product contact surfaces use pharmaceutical-grade materials, and the control system includes operator access logs and parameter change records. Request our GMP compliance documentation.

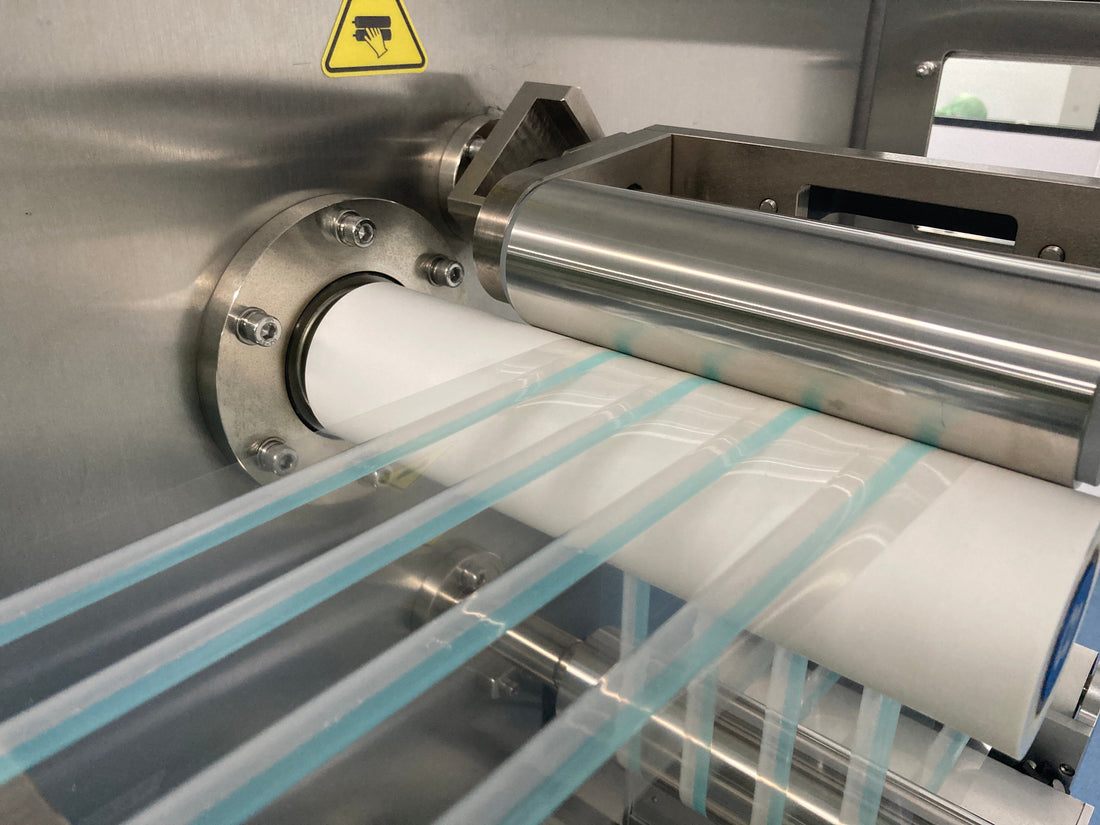

Q: Can Huanghai machines produce stripe-coated or multi-formula ODF films?

A: Yes. Huanghai holds a patent for multi-formula stripe coating (Patent CN117323228A), enabling two different API formulations to be applied side-by-side in a single coating pass. This eliminates the need for multiple coating/drying cycles when producing combination-drug ODF products. Competitors require manual multi-layer coating with drying intervals between each formula. This capability is particularly valuable for fixed-dose combination products (e.g., dual-API ODFs for cardiovascular or CNS indications) where coating efficiency directly impacts production economics.
