Eliminating Thermal Gradients: The Science of High-Precision Franz Cell Diffusion

Introduction

In the development of transdermal patches, creams, and ointments, the Vertical Diffusion Cell (Franz Cell) is the gold standard for in vitro release testing (IVRT) and in vitro permeation testing (IVPT). As outlined in USP <1724>, maintaining precise temperature control and hydrodynamic stability is critical for reproducible results. See our transdermal diffusion instruments.

The Challenge: Efficiency & Consistency

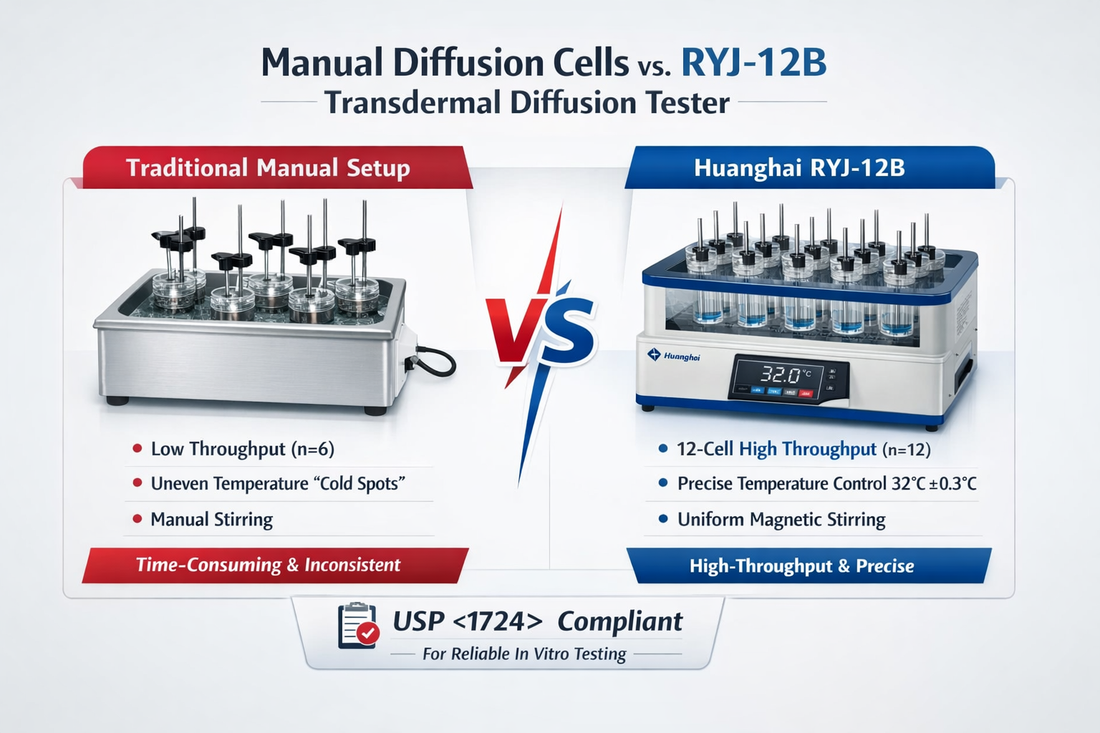

Traditional manual diffusion setups often struggle with two key issues: 1. Low Throughput: Testing a single formulation often requires at least 6 replicates ($n=6$). Manual cells can be slow to set up and difficult to manage simultaneously. 2. Temperature Gradients: Basic water bath systems may have uneven circulation, leading to "cold spots" that affect diffusion rates.

The Solution: Huanghai RYJ-12B

The Huanghai RYJ-12B Transdermal Diffusion Tester is engineered to solve these challenges with a high-throughput, precision-controlled design.

Key Technical Advantages

• 12-Cell High Throughput: With 12 independent vertical diffusion cells, the RYJ-12B allows you to run two complete formulations ($n=6 \times 2$) or a massive parallel study in a single run.
• Precision Water Bath Circulation: The Huanghai RYJ-12B maintains the receptor solution temperature with ±0.3°C control.
• Stirring speed: 100–800 rpm.

Why It Matters: Data Integrity

Regulatory bodies like the FDA require robust evidence of release rate consistency. - Stability: Constant temperature system, ±0.3°C accuracy; maximum run time 9,999 minutes. - Method fit: built around the vertical (Franz) diffusion cell approach described in USP <1724>.

For a full overview of the certifications and compliance standards our equipment meets, see our Certifications & Compliance page.

Conclusion

For R&D labs focusing on Transdermal Delivery Systems (TDS), efficiency does not have to come at the cost of precision. The RYJ-12B offers 12 vertical diffusion cells for formulation screening.

View RYJ-12B Specifications →

---

---

Frequently Asked Questions

Q: What is the regulatory pathway for transdermal patch approval?

A: In the US, transdermal patches are regulated as drug products under FDA 21 CFR Parts 210/211. New patches typically require an ANDA (for generic) or NDA (for novel formulations). Key dossier requirements include in vitro permeation testing (IVPT) data using Franz diffusion cells (USP <724>), comparative adhesion studies, and stability data at ICH conditions. The RYJ-12B Franz Cell Tester runs IVPT studies on 12 parallel vertical diffusion cells.

Q: What is in vitro permeation testing (IVPT) and why is it required?

A: IVPT measures the rate and cumulative amount of API that permeates through a membrane (synthetic or excised skin) over time, using a Franz diffusion cell setup. For transdermal patches, IVPT data: (1) establishes in vitro release specifications for batch release; (2) supports bioequivalence claims for generic patches; (3) monitors manufacturing consistency batch-to-batch. The RYJ-12B supports 12 parallel diffusion cells with temperature-controlled receptor compartments (±0.3°C).

Q: How does solvent-based ODF production differ from hot-melt extrusion (HME)?

A: Solvent-based casting (used by Huanghai MJ150 systems) dissolves API in a polymer solution, spreads it onto a release liner, and dries off the solvent. HME processes API and polymers at elevated temperatures—suitable only for thermostable APIs. Solvent-based systems require solvent management infrastructure (Class I/II classified areas, explosion-proof equipment, solvent recovery), while HME avoids this.

Q: What room classification is required for ODF/transdermal patch manufacturing?

A: For pharmaceutical ODF manufacturing using organic solvents (ethanol, acetone, IPA), the production area requires Class I Division 1 or 2 (NEC) electrical classification (equivalent to ATEX Zone 1 in Europe).
