SC-4000A Transparency Tester – Pharmaceutical Film Light Transmittance Testing Instrument

Transparency Tester

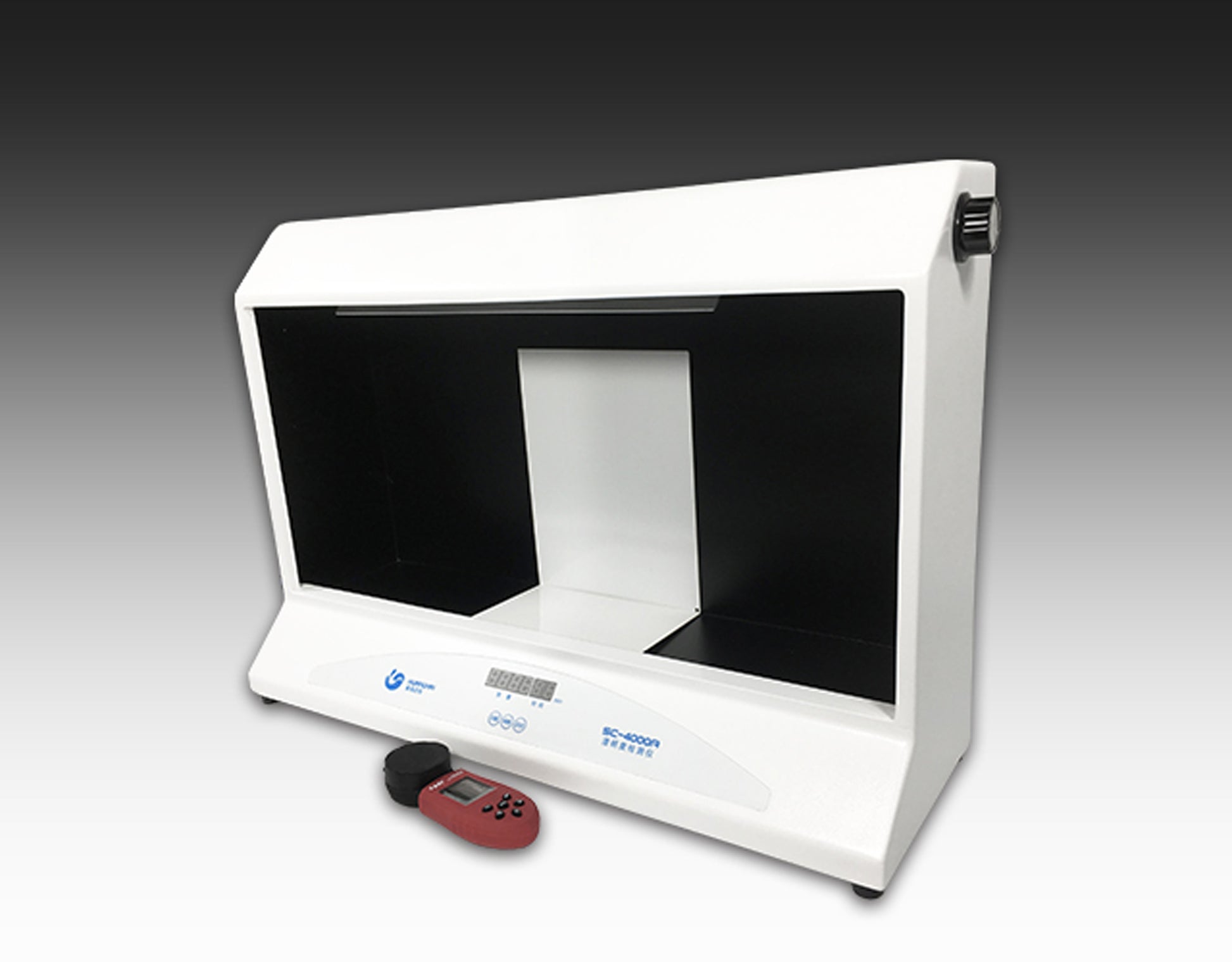

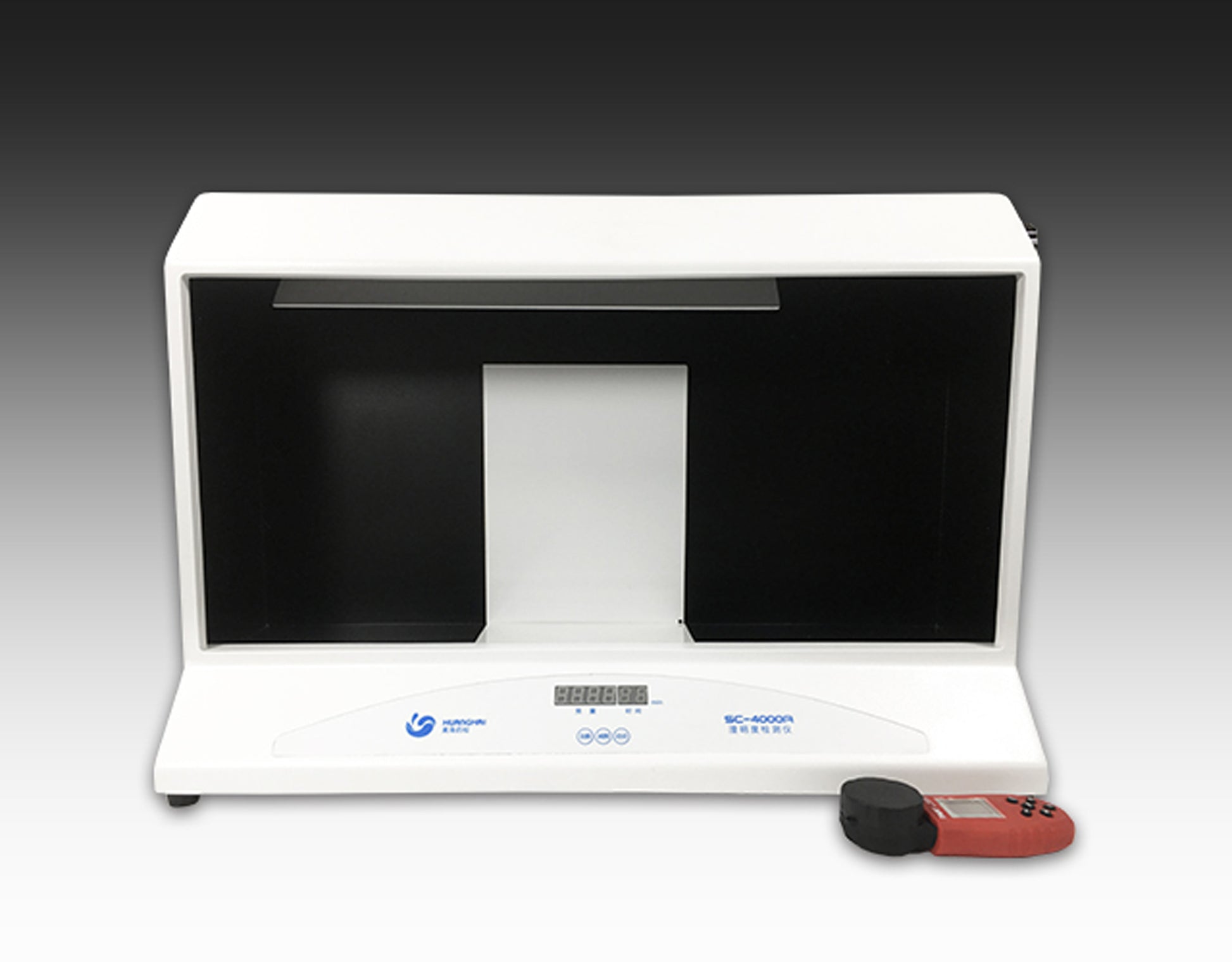

SC-4000A Transparency Tester

The SC-4000A Transparency Tester is a precision-engineered pharmaceutical testing instrument designed to measure the light transmittance and transparency of pharmaceutical films and strip products.

Equipped with high-sensitivity sensors and stable light sources, this transparency tester ensures accurate and repeatable evaluation of film clarity, essential in formulation development and quality assurance.

The SC-4000A is widely used in pharmaceutical R&D laboratories, especially in the development of orally dissolvable films (ODFs) and transdermal patches, where visual appearance and dosage uniformity are critical.

As part of our complete range of pharmaceutical testing instruments, this device enables compliance with product specifications and enhances visual quality evaluation in modern drug delivery systems.

Product Features:

   •  Simple Operation: Intuitive data display for direct observation.

   •  High Brightness Adjustable Lamp: Ensures clear and consistent measurement visibility.

   •  Adjustable Brightness & Illumination: Flexibly adjustable to fit various testing needs.

   •  Stable & Precise Testing: Adjustable test durations enhance consistency and reliability.

   •  Guidance Functions: Equipped with user-friendly indicators for seamless operation.



Product Specifications:



Specification        Value

Model Number    SC-4000A

Product Code     10104105

Lamp Power 20W (Special Fluorescent Lamp)

Illumination Range      1000–4000 LX

Adjustable Time Range     1–99 seconds

Dimensions (L×W×H in cm)       68 × 23 × 51

Total Power  30W

Power Supply       AC220V ±10%, 50Hz

---
