Melting Time Tester

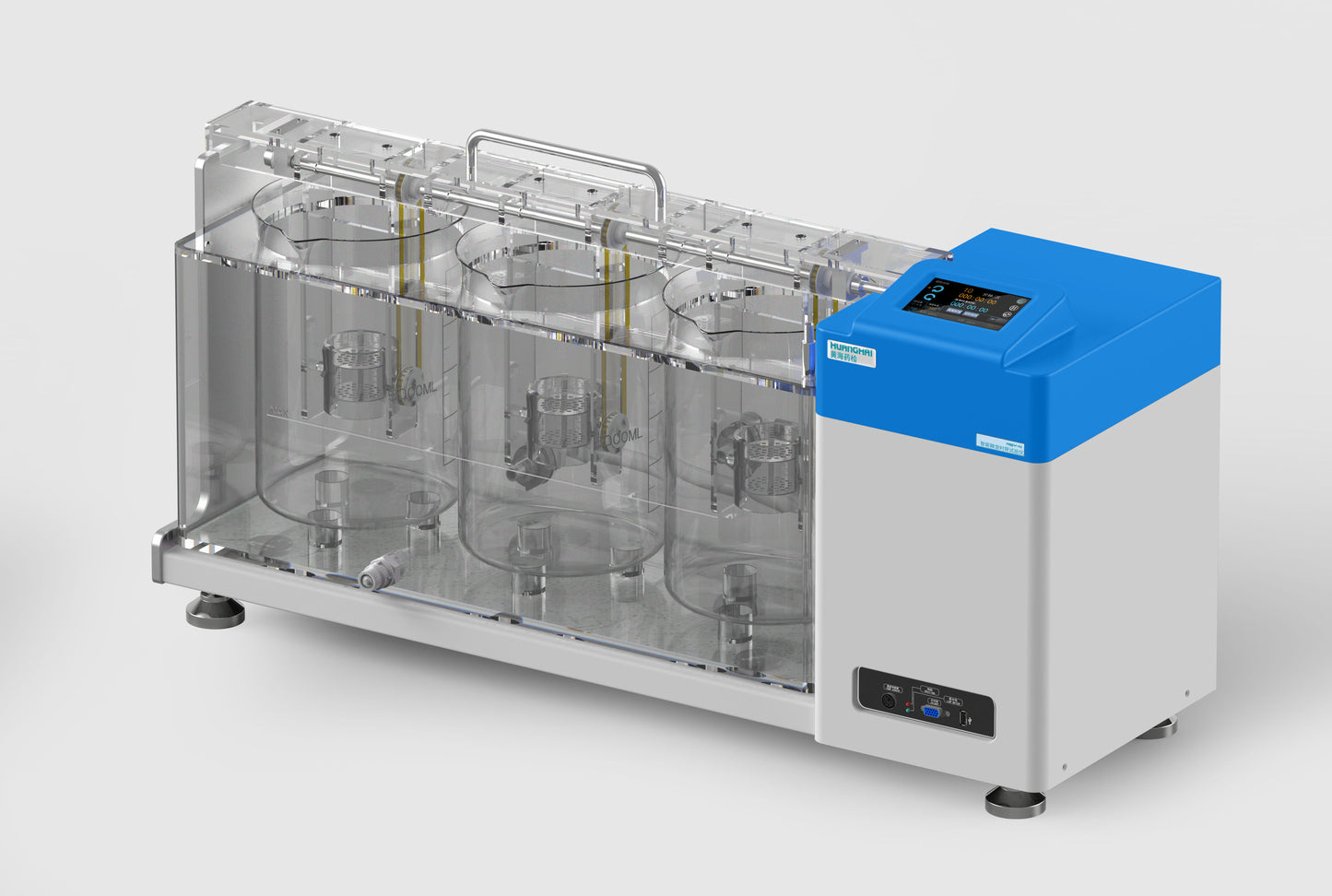

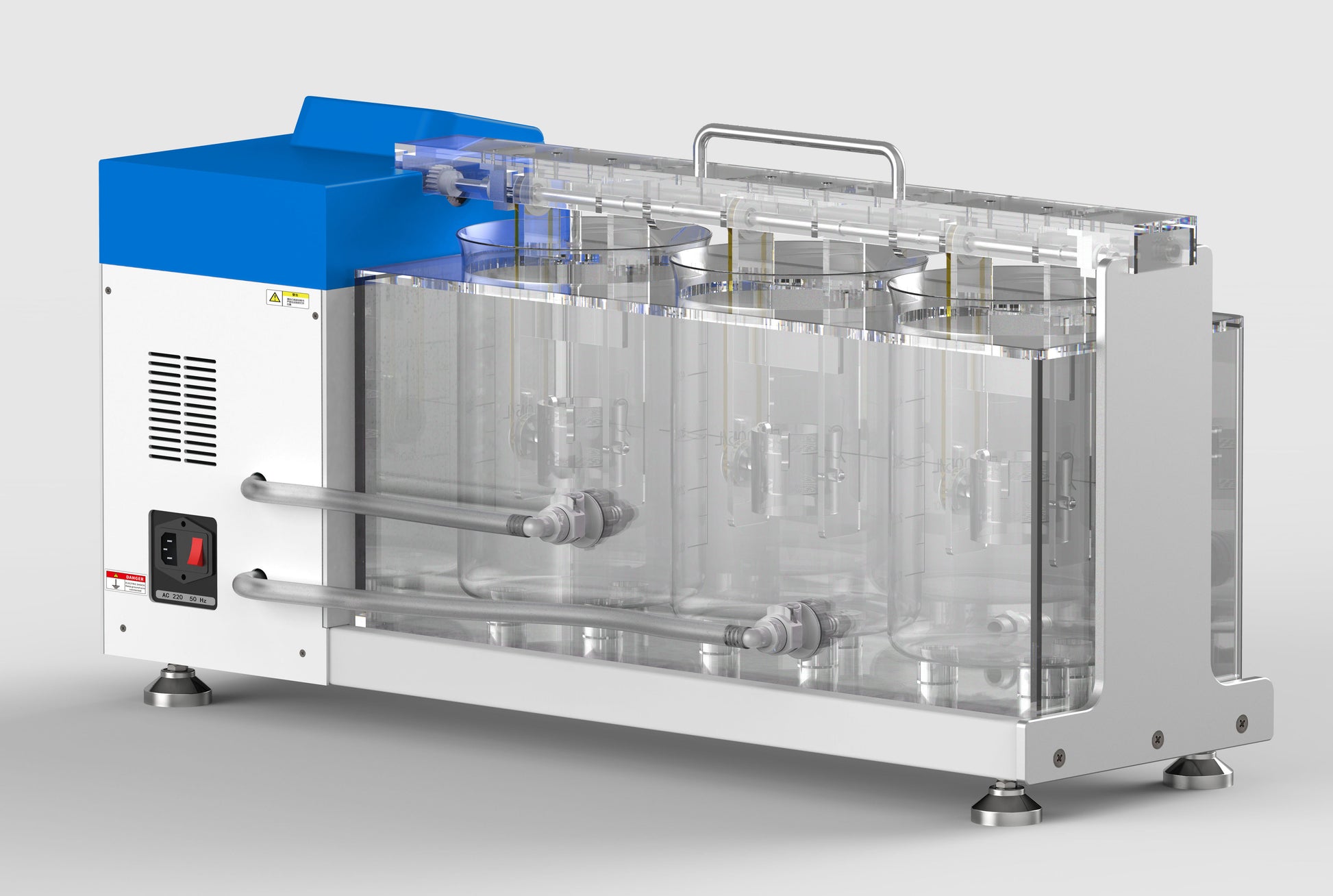

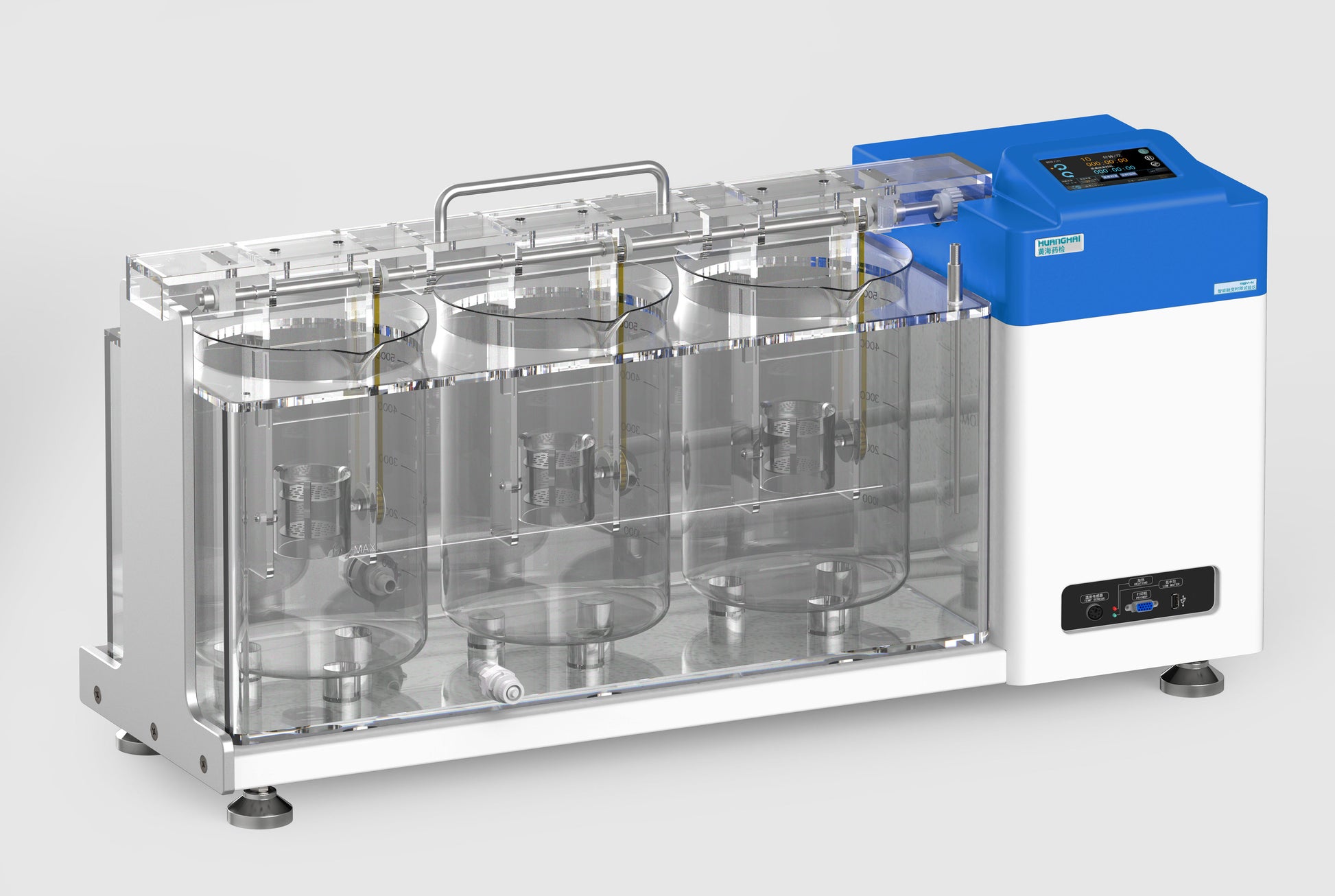

RBY-N Intelligent Melting Time Tester

The RBY-N Intelligent Melting Time Tester is a specialized pharmaceutical testing instrument for evaluating the melting time of solid dosage forms such as tablets and capsules.

This melting tester helps pharmaceutical R&D teams and quality control laboratories assess thermal properties and behavior during dissolution or disintegration.

With user-friendly controls, precise timing, and high reproducibility, the RBY-N improves analysis efficiency for pharmaceutical formulation testing.

As part of our suite of pharmaceutical testing instruments, this device supports product development and process optimization for thermally sensitive drug products.

Description

The RBY-N intelligent melting time tester strictly complies with the current standards of the Chinese Pharmacopoeia. It is used to evaluate the melting, softening, and dissolving processes of solid preparations under specified conditions, and for the analysis of the related time metrics.



Product Features

   •  Data Security and Traceability: Built-in user-level access control, audit trails, and test record management, with the ability to export reports via USB.

   •  Enhanced Efficiency: Facilitates the management of sample information for easier operation.

   •  Precision Control: Real-time temperature monitoring, dual temperature sensors for calibration, ensuring high measurement accuracy.

   •  User-Friendly Interface: Features a touch-screen control panel for ease of operation.

   •  Customizable Testing Frequency: Allows users to set rotation speeds between 1–30 times/min based on the test requirements.

   •  Advanced Pipe Routing: Includes specialized medical-grade connectors for enhanced operational safety.

   •  Regulatory Compliance: Supplied with IQ/OQ certification documentation for quality assurance.



Technical Specifications



Parameters Specifications

l   Model    RBY-N

l   Product Code      10101601

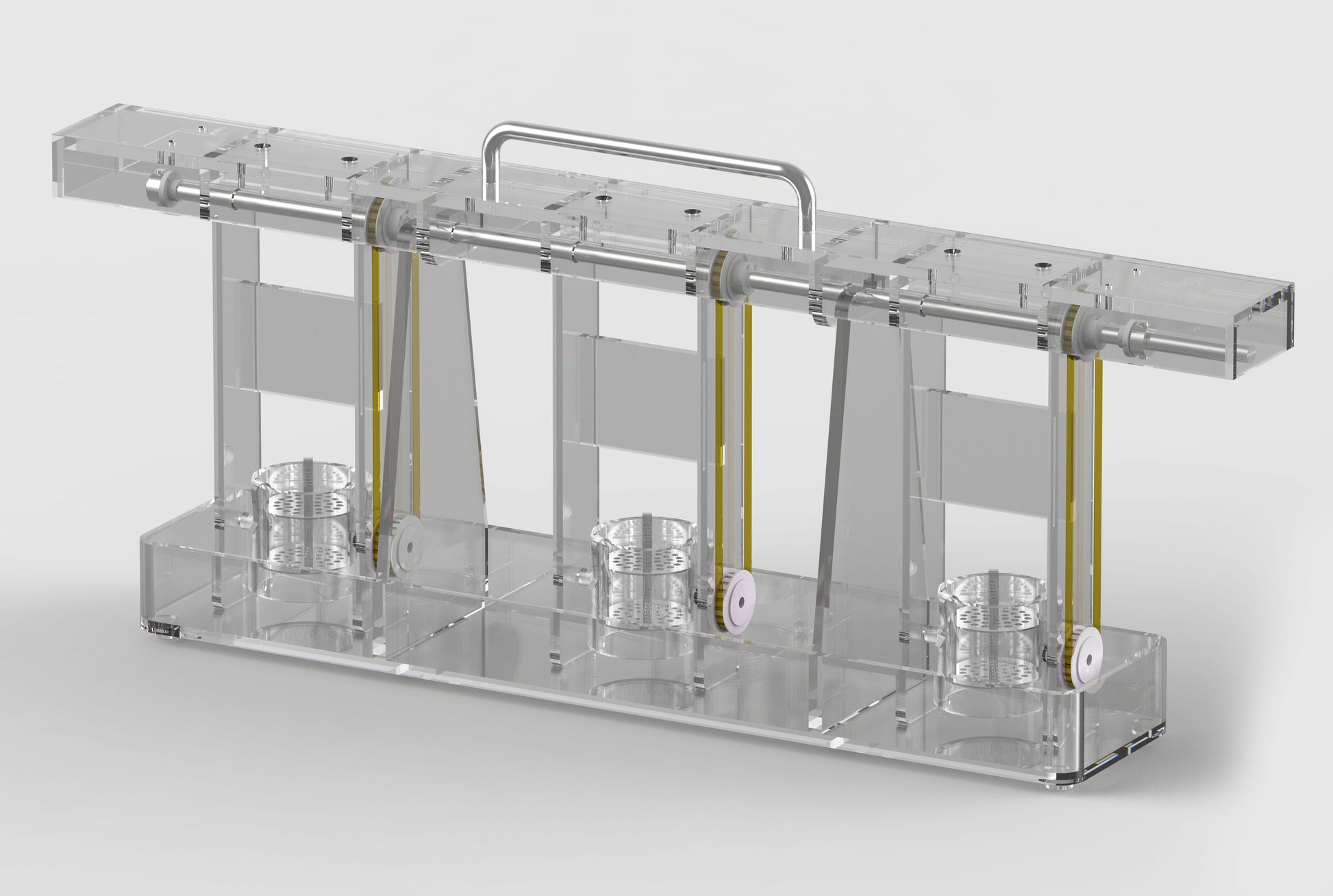

l   Test Stations 3 groups (automatic synchronous rotation)

l   Beaker Capacity 5000mL

l   Transparent Cylinders        Inner Diameter: 52mm, Height: 60mm

l   Perforated Stainless Steel Plates      2 pieces, Diameter: 50mm, each with 39 holes (Diameter: 4mm)

l   Rotation Angle    180°

l   Standard Frequency  10 rotations/min, adjustable (1–30 rotations/min)

l   Timer Range ≤999 hours 59 minutes 59 seconds

l   Temperature Range   Room temperature to 45°C

l   Temperature Resolution    0.1°C

l   Temperature Accuracy     ≤±0.3°C

l   Power Supply       AC220V±10%, 50Hz
