BY-300A Tablet Coating Machine – Lab-Scale Film Coating Equipment for Pharmaceutical Use

High-Performance Experimental Coating Machine for Pharmaceutical Industry

Experimental Coating Machine

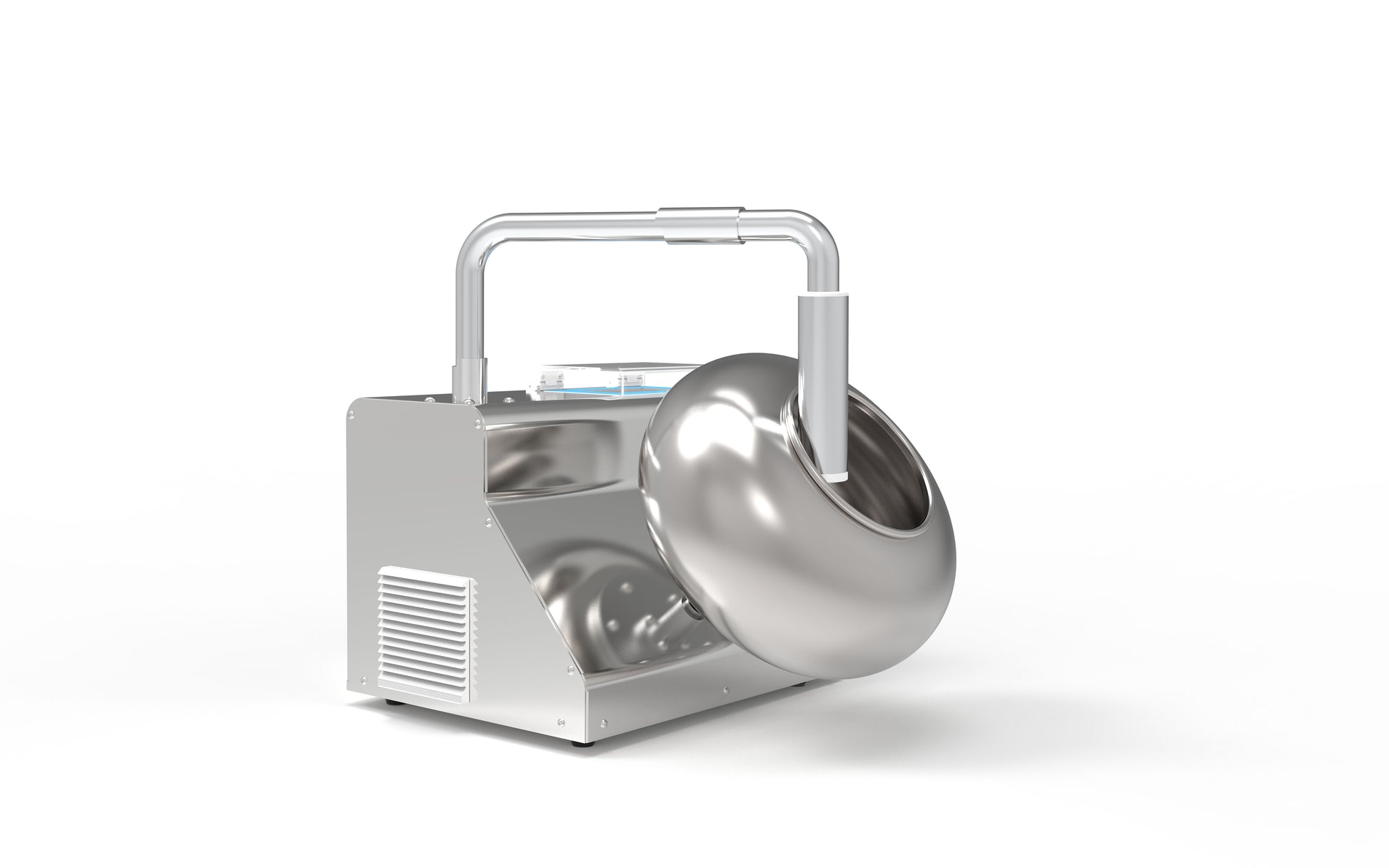

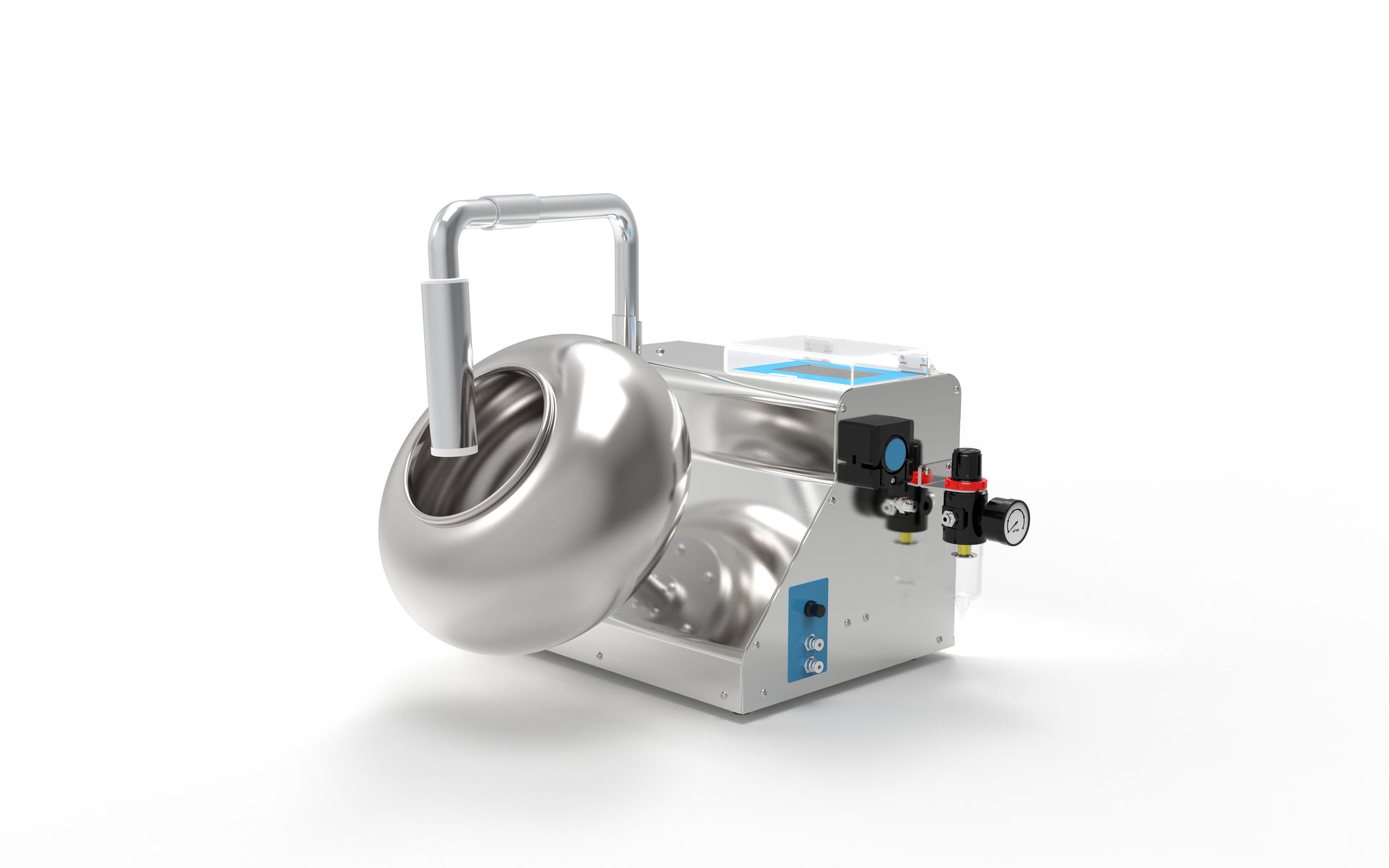

BY-300A Experimental Coating Machine

The BY-300A Experimental Coating Machine is a compact, lab-scale pharmaceutical testing instrument developed for film coating of tablets during pharmaceutical research and formulation development.

Ideal for R&D and pilot-scale production, this tablet coating machine allows precise control of coating parameters including temperature, rotation speed, and spray rate.

With its modular design and efficient coating system, the BY-300A enables pharmaceutical scientists to simulate production-scale coating processes and optimize formulation strategies.

It is part of our comprehensive portfolio of pharmaceutical testing and manufacturing instruments, tailored for formulation testing, stability studies, and process validation.

Description

The BY-300A experimental coating machine is designed for use in pharmaceutical and food research, as well as university teaching applications. It meets the demands of various fields and is suitable for small-scale rapid batch coating, polishing, coloring, drying, and mixing operations.

Product Features

   •  Equipped with φ300 and φ200 diameter coating pans, enabling quick replacements.

   •  Multi-functional design, supporting a range of operations including coating, polishing, coloring, drying, and mixing.

   •  Ideal for coating small particles with uniform and fine mist spray, but not suitable for sticky or large-particle coatings.

   •  Touchscreen human-machine interface, ensuring easy and intuitive operation.

   •  Free IQ/OQ certification documents provided for quality assurance.

Technical Specifications

l   Model    BY-300A

l   Product Code      10108102

l   Coating Pan φ300 (Production Capacity ≤2kg/batch), φ200 (Production Capacity ≤1kg/batch)

l   Speed Range      1–80 RPM

l   Hot Air Temperature   Room Temperature to 100°C

l   Spray Nozzle Diameter      0.3mm

l   Air Pressure  0.5–0.8 MPa

l   Air Inlet Diameter       φ8mm

l   Power Supply       AC220V±10%, 50Hz

Frequently Asked Questions

Q: What industries does Huanghai pharmaceutical equipment serve?

A: Shanghai Huanghai Pharmaceutical Instruments (founded 1978) serves: pharmaceutical manufacturers (tablet, capsule, ODF, transdermal patch, suppository), contract research organizations (CRO/CDMO), academic research institutions, nutraceutical and dietary supplement manufacturers, and pet health product producers. With 30+ countries served and approximately 1,000 clients worldwide, our equipment is validated in FDA, EMA, NMPA, and TGA-regulated environments. Key accounts in China include Sinopharm, Shanghai Pharma Group, Fosun Pharma, CR Pharma, Harbin Pharma, and Sanjin Pharma.

Q: How long is the warranty and what after-sales support does Huanghai provide?

A: Standard warranty: 12 months from date of delivery for all Huanghai instruments and ODF/laser equipment. Warranty coverage includes manufacturing defects and component failures under normal use. After-sales support: remote diagnostics via our Singapore operations team, spare parts inventory for all active models, on-site service available for ODF and laser drilling systems. For critical production equipment, service-level agreements (SLA) with defined response times are available. Contact Mike Gao (Singapore) for support terms specific to your region.

Q: Does Huanghai offer equipment demos or factory visits?

A: Yes. Huanghai's manufacturing facility in Minhang, Shanghai offers factory visits by appointment. Live equipment demonstrations are available for ODF machines (MJ150/MJF180), laser drilling (Olando K3-2), and testing instruments. For international clients, video demonstrations via Teams or Zoom are arranged on request. We can also provide reference customer introductions (where customers consent) for due diligence. Contact us to schedule a demonstration.

Q: What payment terms and financing options are available?

A: Standard payment terms: 30% deposit with order, 70% balance before shipment (T/T bank transfer). For established clients with credit history, 60-day payment terms on balance may be available. Huanghai accepts USD, SGD, CNY, and EUR via T/T bank transfer. Currency hedging is recommended for large equipment purchases given fluctuation risk over 3–6 month lead times. For SME clients, Huanghai can provide bank guarantees or Letters of Credit on request. Contact us for specific payment term discussions.
