RYJ-12B Transdermal Diffusion Tester – In-Vitro Skin Absorption Testing Instrument

Pharmaceutical Transdermal Diffusion Instruments

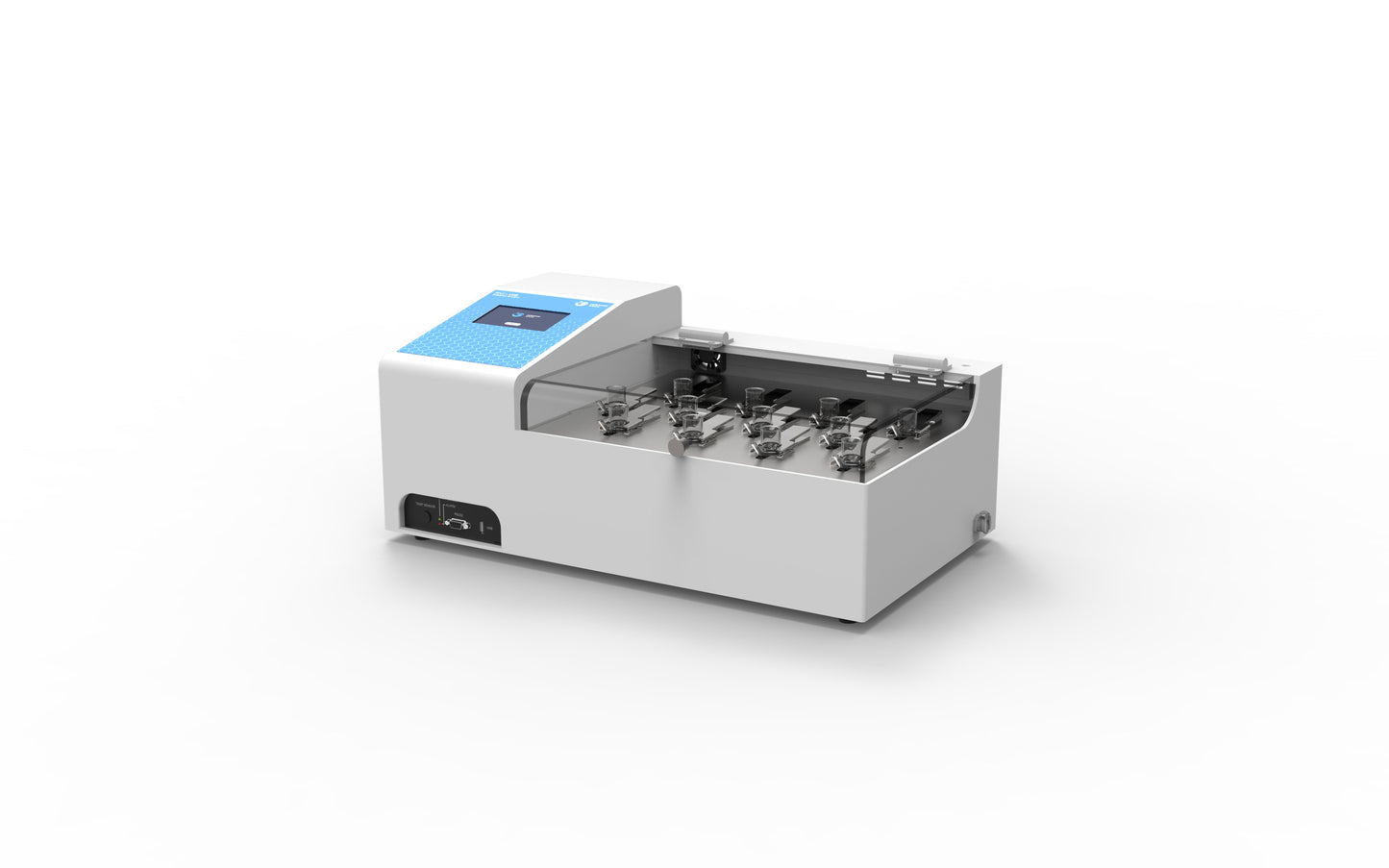

RYJ-12B Pharmaceutical Transdermal Diffusion Tester

The RYJ-12B Transdermal Diffusion Tester is a specialized pharmaceutical testing instrument designed to perform in-vitro transdermal drug delivery testing.

Utilizing a precision-controlled system and Franz diffusion cells, this device simulates skin absorption of topical or transdermal drug formulations under laboratory conditions.

The RYJ-12B is widely used in pharmaceutical R&D, formulation screening, and bioequivalence studies, ensuring reproducibility and compliance with international research standards.

As a core part of our pharmaceutical testing instruments lineup, the RYJ-12B helps pharmaceutical scientists evaluate drug release profiles and optimize transdermal delivery systems.

Description

The RYJ-12B Pharmaceutical Transdermal Diffusion Tester is a collaborative product developed with the National Pharmaceutical Engineering Research Center (NPERC). It adopts an improved vertical Franz diffusion cell structure, where the film is clamped between the donor chamber lid (donor) and the receptor chamber (receptor). The inner surface of the film is immersed in a solution in the receptor chamber under conditions of constant temperature water bath circulation. With precise agitation, it ensures uniform distribution of the medium, simulating the drug’s transdermal penetration and release processes through biological membranes or artificial membranes.

Product Features

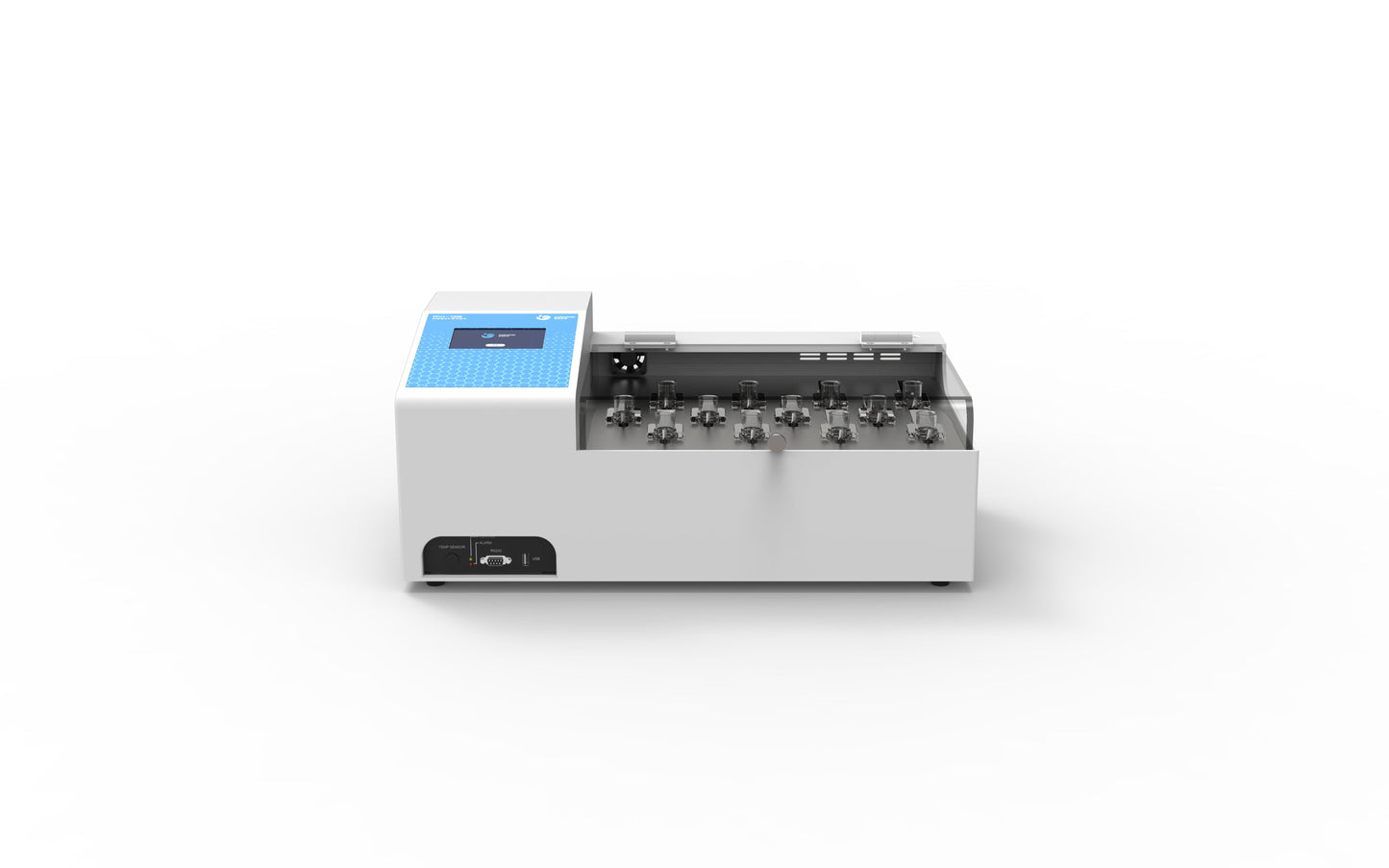

   •  Innovative Franz Cell Design: Features 12 independently improved vertical Franz diffusion cells.

   •  Magnetic Stirring Mechanism: Stable and uniform agitation ensures consistent dissolution concentration distribution.

   •  Precise Flow System: Proprietary design guarantees uniformity in the diffusion medium circulation.

   •  Temperature Insulation: Ensures stable minimum temperature deviation during tests.

   •  Comprehensive Data Export: Equipped with USB ports for exporting test records.

   •  User-Friendly Interface: Features a touch-screen interface supporting both English and Chinese operations for enhanced usability.

Technical Specifications

l   Model    RYJ-12B

l   Product Code      10110100

l   Number of Diffusion Cells  12 groups

l   Volume of Diffusion Cells  8mL

l   Diffusion Area      Approx. 2.2cm²

l   Stirring Speed Range 100–800RPM

l   Speed Stability Deviation  ≤±1%

l   Temperature Range   Room temperature to 45°C

l   Temperature Resolution    0.1°C

l   Temperature Accuracy     ≤±0.3°C

l   Sample Collection Count ≤15 times

l   Sample Collection Timing ≤9999 minutes

l   Power Supply       AC220V±10%, 50Hz
