ODF Packaging: Cutting, Sealing and Moisture Control
Share
In many oral dissolvable film (ODF) and thin-film projects, the upstream steps run surprisingly well: formulation is stable, coating and drying have been optimised, and trial batches look promising. Yet yield and complaints often tell a different story – problems appear at the very end of the line, where films are cut, handled and packed.
At this stage, films are soft, thin and highly sensitive to both mechanical damage and moisture. If end-of-line design is treated as an afterthought, issues such as static, sticking, scratches and inconsistent sealing can quietly erode yield and shorten shelf life. For pharmaceutical and functional films, moisture control and seal consistency are directly tied to stability data and customer experience.
Typical End-of-Line Pain Points for ODF and Film Products
Across different plants and projects, the same patterns show up when end-of-line is not engineered properly:
-
Soft films are easy to scratch, fold or deform
During cutting and transfer, thin films can be scratched by guides or tooling, folded at the edges, or stretched out of specification. These become visible defects or dimension failures. -
Unstable sealing pressure and temperature
If sealing temperature, pressure or dwell time vary with operator or machine conditions, the moisture barrier becomes inconsistent. Some packs seal strongly; others are marginal and more vulnerable to humidity during storage and transport. -
Uneven rhythm and inaccurate feeding
When feeding into the primary and secondary packaging is not well controlled, films can misalign, jam in the forming area or require frequent manual intervention. The result is stop-and-go operation, unstable takt time and fluctuating yield.
In short, the weakest link of an otherwise strong ODF line is often not coating or drying, but the way films are cut, handled and protected at the very end.
What CN203889087U Adds: Inner/Outer Film, Hot-Cut and Push-Feeding
Chinese utility model CN203889087U addresses these challenges by treating ODF packaging as a structured process rather than a set of isolated machines.
In essence, the patent ties together three key elements:
- Inner film or primary pouch – which receives the cut film units and provides the first level of mechanical and hygienic protection.
- Hot-cut and heat sealing – which form the pockets and edges with controlled temperature, pressure and time, improving seal quality and appearance.
- Push-feeding into an outer package – which places the inner packs into an outer moisture-barrier wrapping in a controlled, automated way.

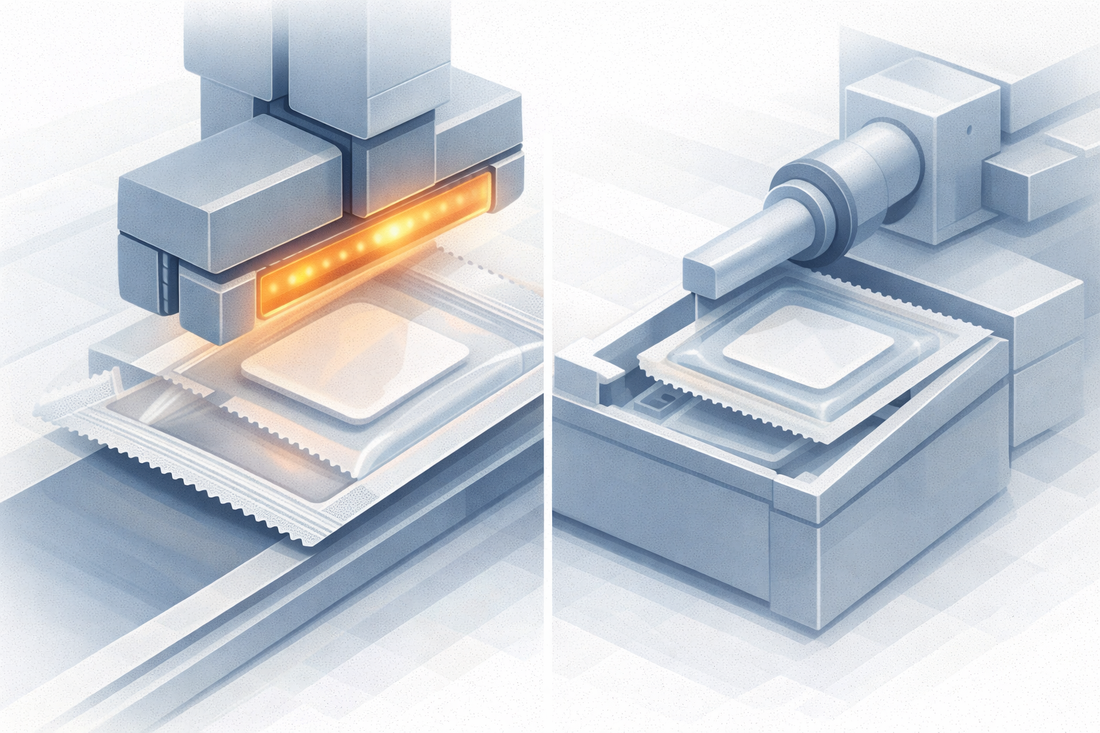

By linking inner packaging → hot-cut sealing → push-feeding into outer packaging into one automatic sequence, CN203889087U aims to:
- strengthen moisture and water resistance,
- reduce dependence on manual handling,
- and improve overall stability of the end-of-line process.
HUANGHAI’s Approach: Designing the End-of-Line as Part of the ODF Line
HUANGHAI’s complete ODF film solutions view the line from coating all the way to cutting and packaging. Instead of selling a coater and leaving packaging to separate vendors, HUANGHAI focuses on takt-time matching and risk control at the end of the line.
The aim is to reduce the secondary damage and sealing instability that so often appear where films are most fragile. In practice, this translates into:
- integrated concepts for cutting, portioning and primary packaging,
- packaging structures that combine inner and outer protection,
- and automation that keeps feeding and rhythm under control.
1. Stronger Moisture Protection Through Inner/Outer Pouch Design
For ODF and similar films, using an inner and outer pouch structure provides a practical balance between usability and protection:
- The inner layer focuses on direct product contact, dose containment and easy tearing or opening.
- The outer layer adds a stronger moisture and oxygen barrier and mechanical robustness for distribution.
This two-layer logic helps smooth out small variations in primary sealing and provides more robust shelf-life performance in real distribution chains.
2. Hot-Cut and Heat Sealing for Consistent Pack Quality
By integrating hot cutting and heat sealing into the packaging module, HUANGHAI-style concepts can:
- create clean, well-defined edges without excessive mechanical stress on the film,
- control sealing temperature, pressure and dwell time in a reproducible way,
- and reduce loose particles or film fragments that complicate cleaning and validation.
In combination with appropriate packaging materials and seal patterns, this directly improves moisture barrier consistency and visual quality at the pack level.
3. Push-Feeding and Stable Takt Time
Push-feeding mechanisms coordinate how cut film units move from cutting and primary packaging into outer wrapping. When properly engineered, they:
- reduce misfeeds and jamming at the loading station,
- maintain a stable, predictable takt time at the end-of-line,
- and limit the impact of packaging issues on the overall OEE of the ODF line.
For production planners and operations teams, this means fewer unplanned stops and more stable output across campaigns.
What Customers Gain from a Structured ODF Packaging Route
1. Stronger, More Consistent Moisture Protection
With an inner/outer pouch structure and controlled hot-cut sealing, customers can achieve:
- more stable moisture barrier performance from batch to batch,
- reduced risk of humidity-related stability failures,
- and greater confidence in claimed shelf life across markets.
2. Higher End-of-Line Yield
By engineering cutting, handling and packaging as a single module, end-of-line yield improves:
- fewer scratches, folds or bent corners on finished units,
- less sticking or blocking during stacking and packing,
- and fewer rejected packs due to visual or dimensional defects.
This directly reduces scrap, rework and hidden costs that previously accumulated at the end of the line.
3. More Predictable OEE and Fewer Bottlenecks
Finally, a stable packaging structure makes it easier to:
- run the full ODF line at a consistent speed,
- plan changeover and cleaning windows with realistic timings,
- and avoid end-of-line bottlenecks that hold back otherwise capable coating and drying modules.
Connecting Packaging to the Complete ODF Solution
HUANGHAI positions end-of-line packaging as an integral part of its ODF offering, not an optional extra. Packaging structures such as those described in CN203889087U are built into its complete line configurations, alongside coating, drying and cutting.
For a broader view of how these modules fit together, you can refer to:
Conclusion: End-of-Line Is a Critical Quality Node, Not an Afterthought
For film-based products, the end-of-line is not a minor detail. It is the point where your product takes its final form – and where moisture, mechanical protection and visual quality meet the customer.
By adopting a structured packaging concept built around inner/outer film or pouch, hot-cut sealing and push-feeding automation, HUANGHAI helps customers reduce the hidden risks at the tail of the process:
- fewer stability and moisture complaints,
- higher end-of-line yield,
- and less rework and scrap at the final steps.
If you are planning or upgrading an ODF line and want to strengthen end-of-line performance, our team can help design a packaging route aligned with your product design, stability profile and throughput targets.
Contact HUANGHAI to discuss cutting and packaging solutions for ODF and film products.
Explore related equipment: ODF film coating machine | pharmaceutical testing instruments.
Frequently Asked Questions
Q: What is the difference between an ODF film and a transdermal patch?
A: Oral Dissolving Films (ODF) are placed on or under the tongue and dissolve within seconds to minutes, delivering APIs directly through the oral mucosa or via swallowing. Transdermal patches adhere to the skin and deliver APIs through the dermal layers into systemic circulation over hours to days. Despite different delivery routes, both are manufactured using similar solvent-cast film coating processes. Huanghai's MJ150 ODF machine supports both applications on a single platform with approximately 2 working days of changeover time.
Q: What production output can I expect from a Huanghai ODF machine?
A: The MJ150 produces 20,000 films/hour at commercial scale. The MJ150-L targets R&D and pilot production at 8,000–10,000 films/hour. For fully integrated lines, pair either machine with the MJF180 automatic cutting and packaging system (11,900 films/hr) or the more affordable EZ320 (9,000 films/hr). A complete MJ150 + MJF180 line can produce over 150 million finished pouches annually on a single-shift basis. Contact us for pricing and configuration details.
Q: What drying technology does Huanghai use for ODF production?
A: Huanghai uses patented gradient hot-air drying (Patent CN201668734U), which applies a smooth progressive temperature drop rather than stepwise oven zones used by competitors. This results in more uniform film thickness, reduced edge curl, and better API distribution across the film web. An optional far-infrared heating module adds 20–30% drying efficiency for solvent-based formulations. This patented drying system is one of the key technical advantages that justifies Huanghai's position as the preferred ODF equipment supplier to Sinopharm, Shanghai Pharma, and Fosun Pharma.
Q: What are the GMP requirements for ODF production equipment?
A: ODF manufacturing equipment must comply with cGMP (21 CFR Parts 210/211) for US market products, and equivalent standards (EU GMP Annex 1, ChGMP) for other markets. Key requirements: material contact surfaces must be 316L stainless steel or equivalent; CIP/SIP capability or documented cleaning validation; data integrity controls meeting ALCOA+ principles (audit trails, access control). Huanghai ODF machines meet these standards—all product contact surfaces use pharmaceutical-grade materials, and the control system includes operator access logs and parameter change records. Request our GMP compliance documentation.
Q: Can Huanghai machines produce stripe-coated or multi-formula ODF films?
A: Yes. Huanghai holds a patent for multi-formula stripe coating (Patent CN117323228A), enabling two different API formulations to be applied side-by-side in a single coating pass. This eliminates the need for multiple coating/drying cycles when producing combination-drug ODF products. Competitors require manual multi-layer coating with drying intervals between each formula. This capability is particularly valuable for fixed-dose combination products (e.g., dual-API ODFs for cardiovascular or CNS indications) where coating efficiency directly impacts production economics.
