ODF Drying Efficiency: Why Energy ROI Beats High Power Output
In the pilot phase of an ODF (Oral Dissolvable Film) project, engineering teams focus primarily on film formation and basic drying ("Can we dry it?"). However, as production scales toward commercialization, the drying section quickly becomes the dominant variable in Operational Expenditure (OPEX). The true metric of success shifts from "how much power can the heaters generate" to "how much energy is required per unit of output (kWh/unit)."
For high-capacity manufacturing, commercial success isn't about raw power—it’s about the Energy Efficiency Ratio and the stability of the drying window.
The Pitfalls of "Brute Force" Heating
Many manufacturers attempt to solve drying bottlenecks by simply increasing the installed power of the heating elements. While this may theoretically accelerate solvent evaporation, it introduces three significant risks:
- High Electricity Costs: Excessive wattage without efficient heat exchange leads to skyrocketing utility bills that erode product margins.
- Heavy Thermal History: Aggressive heating can damage sensitive Active Pharmaceutical Ingredients (APIs) or cause film defects like brittleness, warping, or "skinning" (surface drying that traps moisture inside).
- Narrow Process Windows: Over-reliance on raw power makes the system less forgiving to minor fluctuations in coating thickness or ambient humidity.
The ODF Drying Logic: Gradient vs. Constant Heat

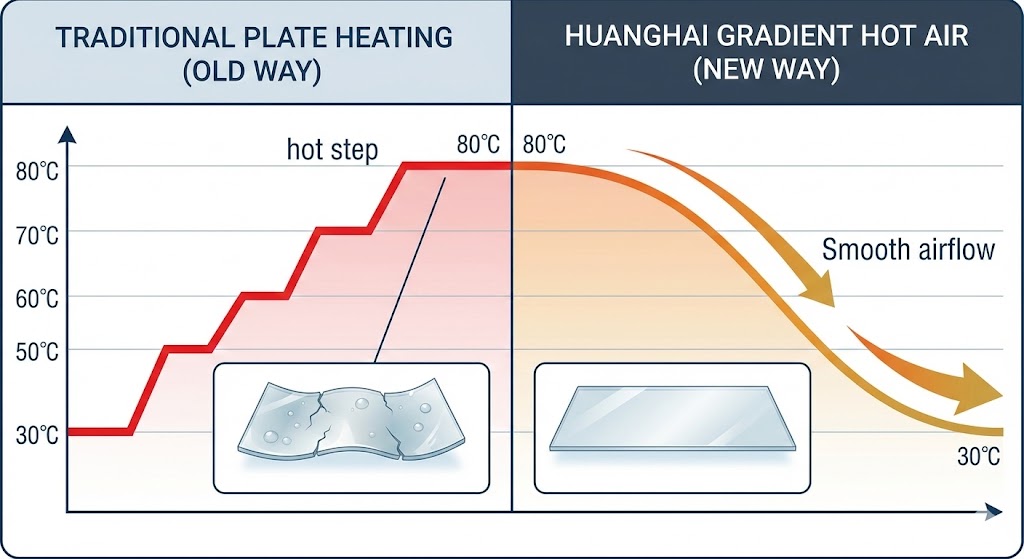

Successful ODF manufacturing must utilize a "gradient transition" logic—moving from intense heat to a gentle, controlled finish. While traditional oven-style systems (often using heating plates) rely on stepped temperature changes that require manual intervention, modern hot air drying technology enables a smooth, programmed temperature decline.
The Huanghai Solution: Efficiency Through Engineering
At Shanghai Huanghai, our engineering philosophy for the MJ Series ODF Machines focuses on maximizing heat exchange efficiency and uniformity rather than simply stacking power.
1. Hot Air Uniformity vs. Static Plates
Huanghai adopts advanced hot air drying technology. Unlike static heating plates, our forced-air systems ensure consistent drying across the entire width of the web. This means:
- Lower Rejection Rates: Uniformity prevents local over-drying or under-drying, reducing scrap.
- Energy for Desolvation, Not Waste: We ensure energy is used to remove solvent/water, not just to heat the machine frame.
2. Optional Far-Infrared (IR) Integration
For clients looking to boost throughput, we offer optional Far-Infrared modules. This technology targets the solvent directly, improving drying efficiency by approximately 20–30% without the need to physically lengthen the machine.
Calculating Your Annual Savings (The "Hidden Cost" Audit)
We advise clients to move from vague "energy saving" claims to a calculable audit. Consider this formula for your facility:
Annual Energy Cost ≈ (kWh per 10k strips) × (Annual Volume) × (Electricity Rate)
Potential Savings ≈ (Efficiency Delta) × (Annual Volume) × (Electricity Rate)
When operating at high capacity with systems like the MJF180 Production Line, even a small reduction in "kWh per unit" translates to significant annual savings—often reaching hundreds of thousands of RMB/USD depending on local energy prices.
