Introduction
Transdermal drug delivery is one of the most technically demanding formulation challenges in фармацевтический development. Demonstrating that an active фармацевтический ingredient reliably permeates a membrane at the intended flux rate requires a test method that precisely replicates physiological conditions — and equipment that enforces those conditions consistently across all test positions simultaneously. The RYJ-12B Transdermal Diffusion Tester is a 12-position wet-type vertical diffusion system built around a constant-temperature water bath circulation system and the vertical ячейка Франца geometry that keeps receptor fluid in direct membrane contact throughout the entire test.
What Is ячейка Франца тестирование?
ячейка Франца тестирование is the стандарт in vitro method for characterizing the permeability of drugs, cosmetics, and semi-solid formulations through a synthetic or biological membrane. The test quantifies how much of a substance crosses a defined barrier per unit time — the permeation flux — under controlled temperature and hydrodynamic conditions.
The method is specified by:
- USP \<724> — Drug Release тестирование for transdermal drug delivery systems
- Chinese Pharmacopoeia (ChP) — corresponding diffusion тестирование monographs for topical and transdermal dosage forms

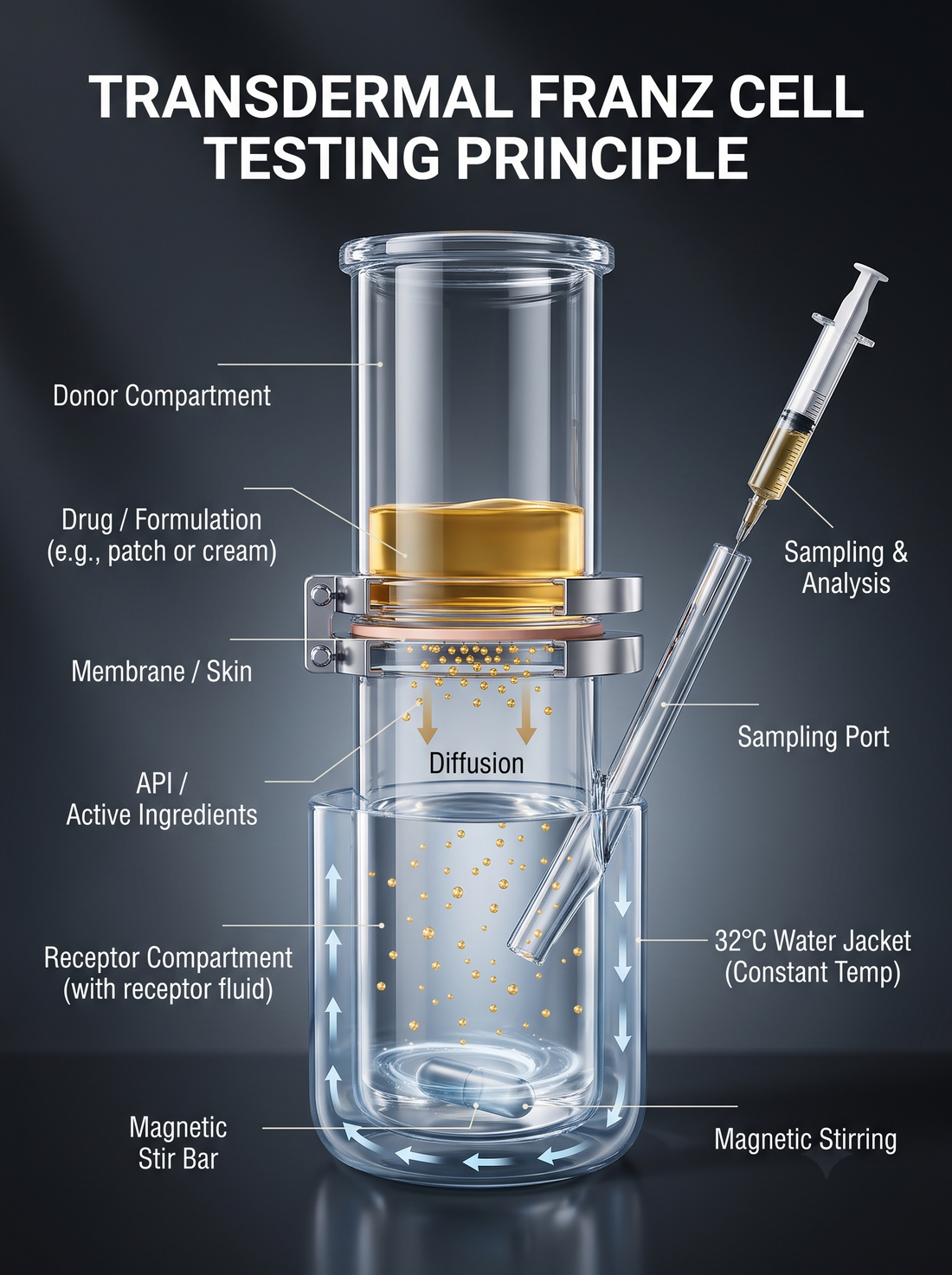

A ячейка Франца assembly consists of two chambers separated by a membrane:
- Donor compartment: Contains the formulation (patch, cream, gel, or film) applied to the membrane surface
- Receptor compartment: Contains the receptor fluid (typically buffer solution) that simulates the subdermal environment
Samples are withdrawn from the receptor compartment at defined time intervals, and permeant concentration is measured by HPLC or UV-Vis spectrophotometry. The resulting flux profile determines whether the formulation delivers drug at the target rate and duration.
Vertical vs. Horizontal Cell Design: The Engineering Difference
The two predominant diffusion cell geometries used in фармацевтический тестирование are vertical and horizontal configurations. The choice between them is not arbitrary — it has direct consequences for data quality and membrane integrity.
Vertical diffusion cell (ячейка Франца design):
- The membrane is oriented horizontally, separating a donor chamber above from a receptor chamber below
- The receptor fluid fills the entire lower chamber, maintaining continuous, bubble-free contact with the underside of the membrane
- Stirring of the receptor fluid is performed magnetically from below, ensuring hydrodynamic uniformity directly beneath the membrane
- There is no risk of the membrane dewetting or losing contact with the receptor fluid during the test
Horizontal diffusion cell design:
- The membrane is oriented vertically, with donor and receptor chambers on either side
- Maintaining bubble-free membrane contact in the receptor chamber requires careful filling and degassing
- Gravitational effects on membrane orientation can introduce non-uniform hydrodynamic conditions
Key advantages of vertical geometry:
- Membrane always submerged: In the vertical configuration, gravity keeps the receptor fluid pressed against the membrane throughout the test duration. Partial dehydration of the membrane basal surface — a known source of error in horizontal cell designs — cannot occur.
- Reproducible hydrodynamics: The magnetic stir bar positioned in the receptor chamber produces consistent laminar flow across the entire membrane surface, directly controlling the stagnant boundary layer thickness.
- Simplified assembly: Loading the donor formulation onto a horizontally-oriented membrane is more reproducible than applying it to a vertical surface, reducing application variability between positions.
- Sink condition maintenance: Receptor chamber geometry in the vertical ячейка Франца is designed for straightforward sampling and replenishment without disturbing the membrane assembly.
The RYJ-12B implements wet-type vertical diffusion cell geometry — the configuration recommended by USP \<724> and ChP for трансдермальный пластырь and semi-solid тестирование.
Technical Specifications of the RYJ-12B
The RYJ-12B Transdermal Diffusion Tester is Huanghai's 12-position wet-type vertical diffusion system. All specifications below are sourced from the Huanghai 2025 product knowledge base:
System configuration:
- Model: RYJ-12B
- Method: Wet-type vertical diffusion (ячейка Франца geometry)
- Cell positions: 12 (enabling simultaneous тестирование of 12 membrane assemblies)
- Temperature control: Constant-temperature water bath circulation system
Temperature performance:
The water bath circulation system maintains receptor fluid temperature at 32°C ±0.3°C — the стандарт test temperature for transdermal permeation studies that simulates the approximate temperature of human skin surface. A tolerance of ±0.3°C across all 12 positions ensures that temperature-dependent membrane permeability coefficients are measured under equivalent thermal conditions in every cell.
12-position throughput:
- 12 simultaneous test positions enable full statistical characterization of formulation permeability in a single run
- USP \<724> and corresponding ChP monographs specify replicate тестирование; 12 positions provide sufficient n to calculate mean flux, стандарт deviation, and inter-replicate variability in one experiment
- High throughput is essential in formulation development screening, where multiple membrane types, formulation concentrations, or excipient combinations must be evaluated in parallel
соответствие scope:
- USP \<724> Drug Release — transdermal drug delivery systems
- Chinese Pharmacopoeia (ChP) — topical and transdermal dosage form тестирование monographs
- The wet-type vertical cell geometry is the geometry explicitly described in USP \<724> Apparatus 5 (paddle over disk) and Apparatus 6 (cylinder) for transdermal systems; the ячейка Франца is the dominant implementation for membrane-based diffusion studies
Why It Matters for Transdermal Drug Development
The фармацевтический rationale for precise ячейка Франца тестирование extends beyond method соответствие. It directly determines the reliability of in vitro–in vivo correlation (IVIVC) data, formulation optimization decisions, and regulatory submission packages.
Critical applications where RYJ-12B performance is decision-relevant:
- Formulation screening: Comparing permeation flux across excipient combinations, API concentrations, or membrane types requires an instrument with consistent inter-position performance. A ±0.3°C temperature uniformity across 12 positions ensures that observed differences between formulations reflect true physicochemical differences, not instrumental variability.
- Membrane selection: Synthetic membranes (e.g., polydimethylsiloxane, cellulose acetate) and biological membranes (excised skin, PAMPA) respond differently to temperature. Controlled, uniform thermal conditions are essential for generating reproducible comparative data.
- Stability and shelf-life тестирование: трансдермальный пластырь permeation profiles at accelerated or real-time storage conditions must be tested with an instrument that can maintain defined thermal conditions consistently over extended test durations.
- Regulatory submissions: ANDA and NDA submission packages for transdermal products require in vitro dissolution/diffusion data generated under pharmacopeially-specified conditions. Instrument соответствие with USP \<724> and ChP is not optional for submission-ready data packages.
Where the vertical geometry specifically eliminates error:
- Eliminates membrane dewetting artifacts that inflate apparent permeability in horizontal cells
- Removes bubble entrapment variability from the receptor chamber
- Standardizes donor application geometry across all 12 positions simultaneously
The Huanghai Solution
The RYJ-12B is Huanghai's dedicated 12-position transdermal diffusion тестирование instrument. It is positioned alongside the TPY-2 Dual-Method Diffusion Tester, which accommodates 12 wet vertical plus 6 dry horizontal cells for laboratories that require both geometries.
For organizations focused specifically on трансдермальный пластырь and semi-solid formulation characterization under USP \<724> and ChP, the RYJ-12B provides:
- 12-position capacity for statistically robust replicate тестирование in a single experiment
- Wet-type vertical ячейка Франца geometry with continuous membrane submersion
- 32°C ±0.3°C constant-temperature water bath circulation simulating skin surface temperature
- USP \<724> and ChP соответствие for regulatory submission-grade data generation
- Accessible price point making 12-position automation accessible for R&D budgets without sacrificing pharmacopeial соответствие (contact us for pricing)
Conclusion
The ячейка Франца vertical diffusion geometry is not simply a лаборатория convention — it is an engineering solution to a well-defined measurement problem: keeping a membrane fully hydrated, thermally controlled, and hydrodynamically uniform across all test positions simultaneously. The RYJ-12B delivers this geometry at 12 positions with ±0.3°C temperature precision, making it the appropriate instrument for any organization conducting transdermal or topical permeation studies under USP \<724> or ChP. In drug development, the reliability of your formulation decisions is only as good as the data they are based on.
