RCZ-8A Intelligent Pharmaceutical Dissolution Tester - Advanced Drug Dissolution Testing

Dissolution Instruments

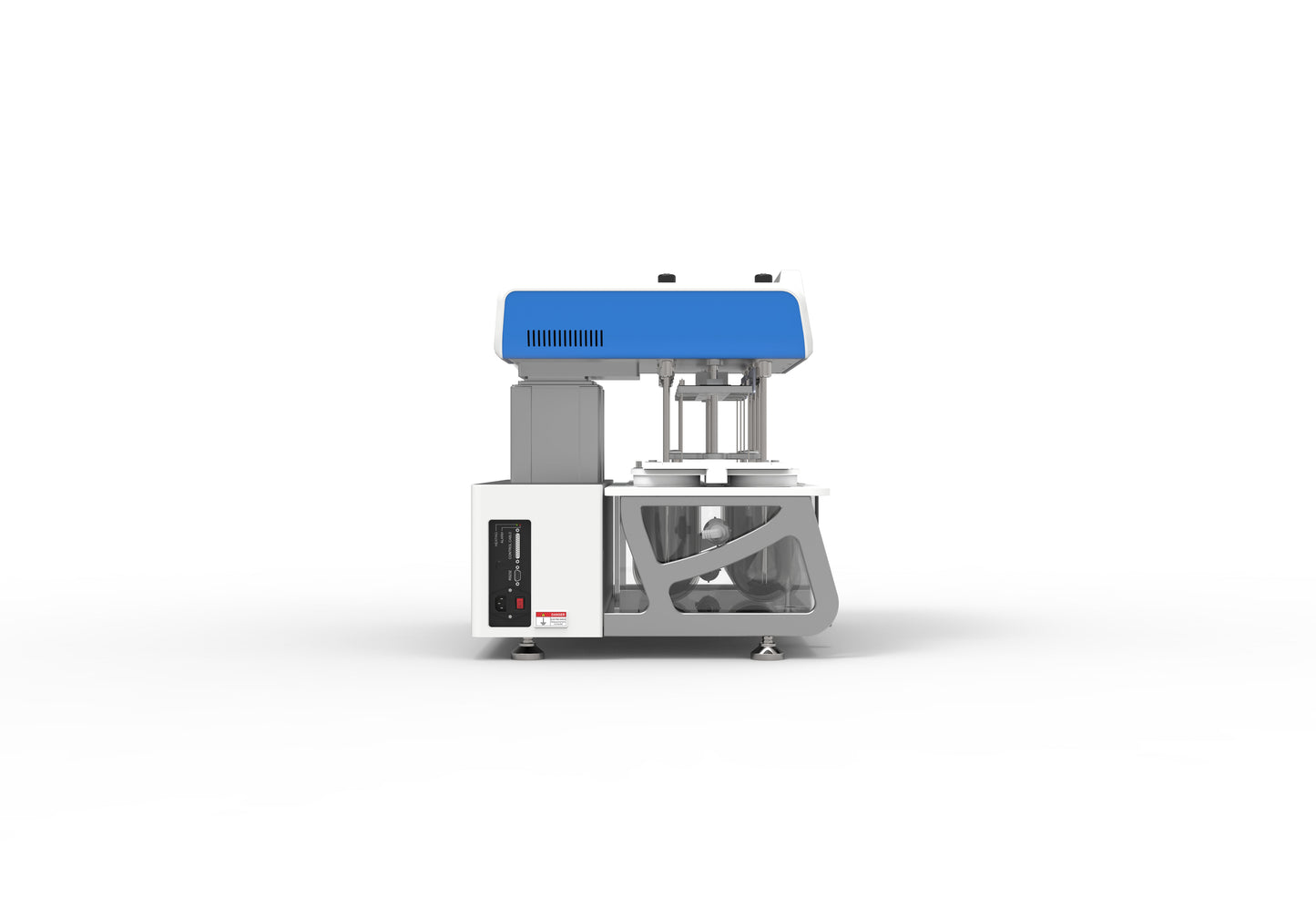

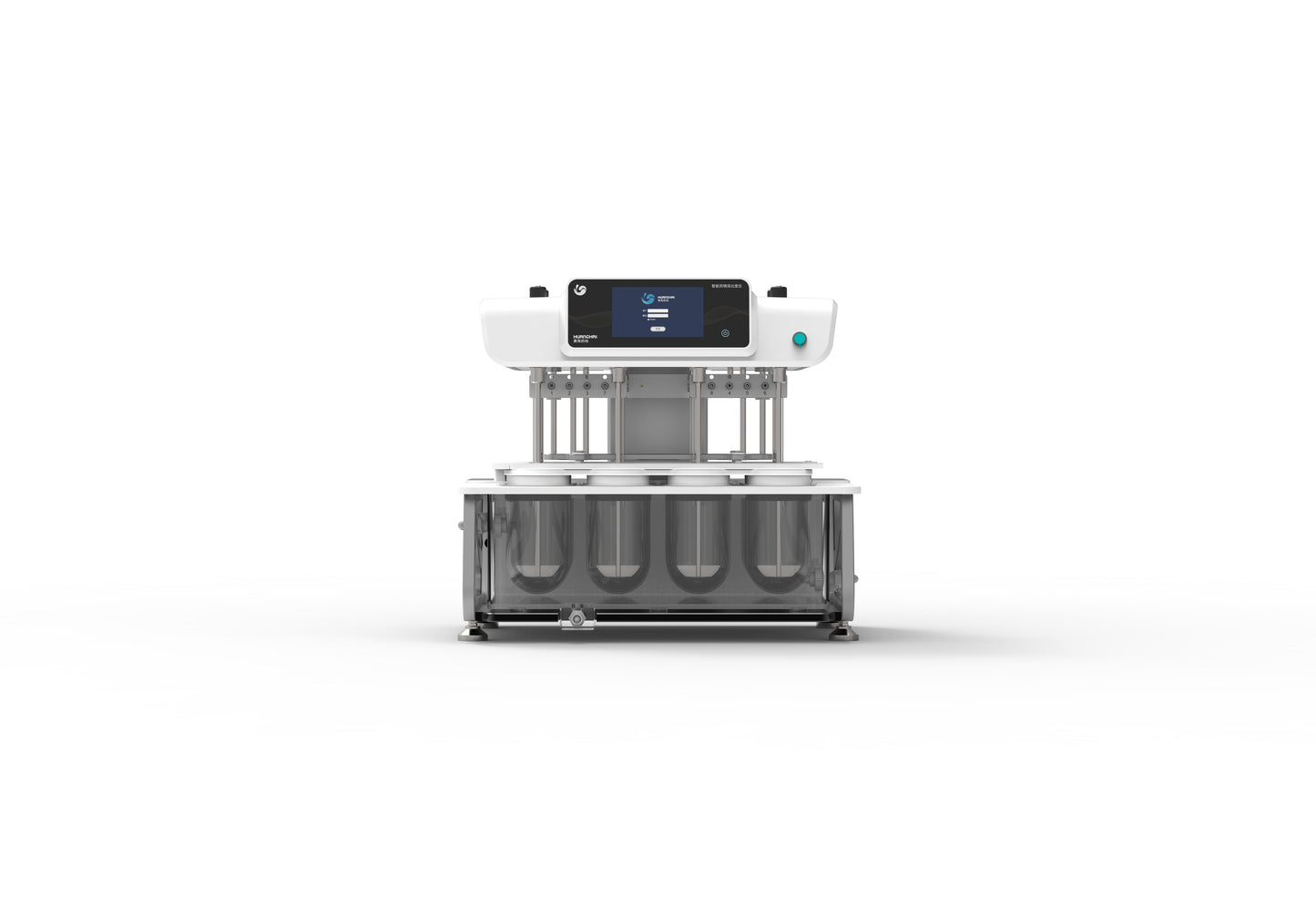

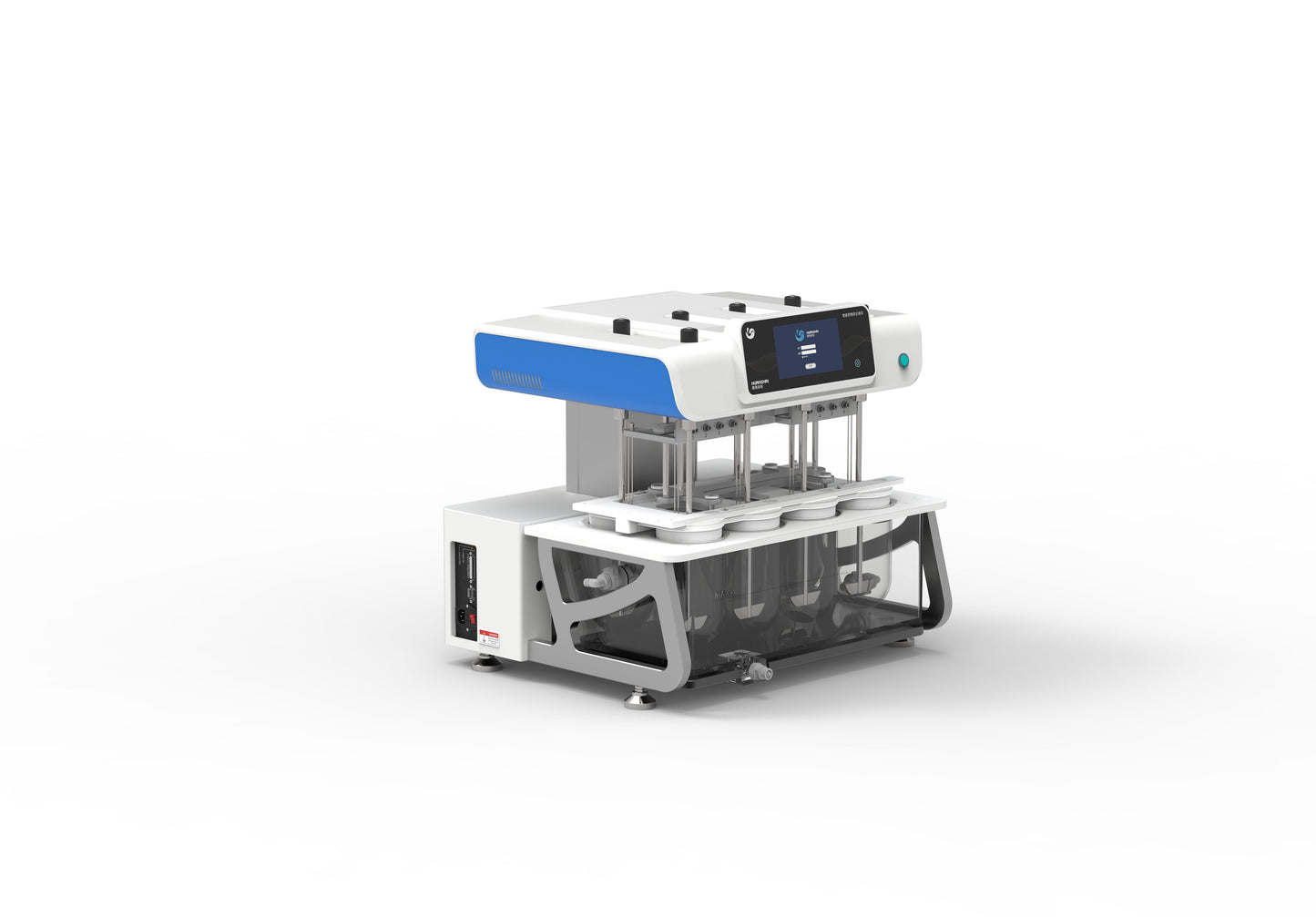

RCZ-8A Intelligent Pharmaceutical Dissolution Tester

Description

The RCZ-8A Intelligent Pharmaceutical Dissolution Tester is designed in full compliance with the latest Chinese Pharmacopoeia and United States Pharmacopeia standards, as well as the Mechanical Validation Guidelines for Dissolution Testers. This advanced 8-channel dissolution system ensures precise testing and complete data integrity. It is compatible with the ZQY-8A Automatic Sampling System for seamless operation.



Product Features



1. Advanced Data Management

   •  Built-in three-tier user permissions, audit trails, and test record management.

   •  USB connectivity supports direct test data export for reporting.

   •  Frequently used data and sampling solutions can be stored for convenient reuse.



2. High-Precision Dissolution Control

   •  Real-time temperature control with independent measurements for each dissolution cup.

   •  Dual-layer temperature protection ensures stability and reliability.

   •  Preheating functionality allows users to schedule start times for heating.



3. Automated and Modular Design

   •  Supports both manual and automatic drug addition and sampling.

   •  Modular design for sampling components enables quick replacement.



4. Optimized Sampling System

   •  Separate sampling and tray systems avoid cross-contamination.

   •  Vapor condensation design minimizes evaporation loss.

   •  Advanced circulation pipeline with professional quick-release connectors.



5. Compliance and Certification

   •  Fully compliant with pharmacopoeia standards.

   •  Includes IQ/OQ certification documentation for validation.



Product Specifications

l   Parameter    Specification

l   Model    RCZ-8A

l   Product Number 10100110

l   Dissolution Channels  8 channels

l   Swing Radius Consistency ≤0.5mm

l   Rotation Speed Deviation ≤1.0mm

l   Axial Deviation   ≤1.0mm

l   Speed Range      10–300 RPM

l   Stability ≤1%

l   Adjustment Range     Room temperature to 45.0°C

l   Temperature Uniformity     0.1°C

l   Control Precision ±0.3°C

l   Sampling Volume       <100ml

l   Sampling Time     ≤999.9h/59min59s

l   Power Supply       AC220V±10%, 50Hz
