RCZ-1B Dissolution Tester – Pharmaceutical Testing Instrument for Tablets

Dissolution Instruments

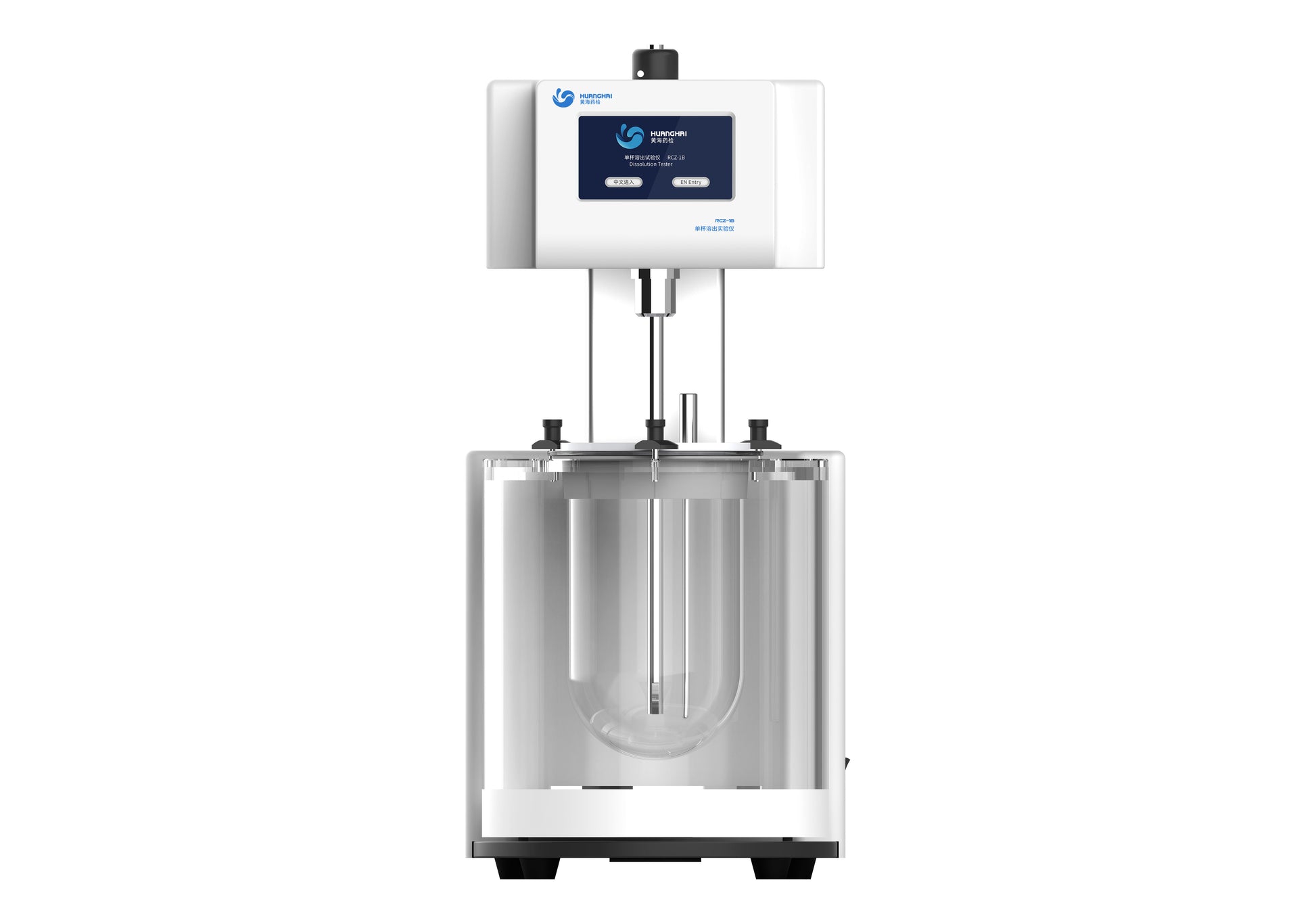

RCZ-1B Dissolution Tester

The RCZ-1B is a high-precision pharmaceutical testing instrument ideal for dissolution testing of tablets and capsules. This dissolution tester meets USP standards and is widely used in pharmaceutical quality control labs. As part of our range of pharmaceutical testing instruments, the RCZ-1B ensures consistent, accurate results for drug dissolution studies.

Description

The RCZ-1B Single-Channel Dissolution Tester is fully compliant with the latest Chinese Pharmacopoeia and United States Pharmacopeia standards, as well as the Mechanical Validation Guidelines for Dissolution Testers. It is designed for a variety of standardized dissolution tests.



Product Features



1. User-Friendly Interface

   •  Equipped with a touch-screen human-machine interface for ease of operation.

   •  Supports bilingual (Chinese and English) interface to meet diverse user needs.



2. Advanced Data Management

   •  USB connectivity for test data export and report generation.



3. High-Precision Dissolution Control

   •  Real-time temperature monitoring with dual-layer temperature protection and calibration functionality.

   •  Independent temperature control ensures accuracy and stability.



4. Automated and Modular Design

   •  Modular sampling system enables quick replacement.

   •  Supports automated centering of dissolution cups and paddles.



5. Compliance and Certification

   •  Fully compliant with pharmacopoeia standards.

   •  Includes IQ/OQ certification documentation.



Product Specifications

l   Parameter    Specification

l   Model    RCZ-1B

l   Product Number 10100111

l   Dissolution Channels  1 channel

l   Swing Radius Consistency ≤0.5mm

l   Rotation Speed Deviation ≤1.0mm

l   Axial Deviation   ≤2.0mm

l   Speed Range      10–300 RPM

l   Stability ≤1%

l   Adjustment Range     Room temperature to 45.0°C

l   Temperature Uniformity     0.1°C

l   Control Precision ±0.3°C

l   Sampling Cycle  ≤15 cycles

l   Sampling Time     ≤9999 minutes

l   Power Supply       AC220V±10%, 50Hz
