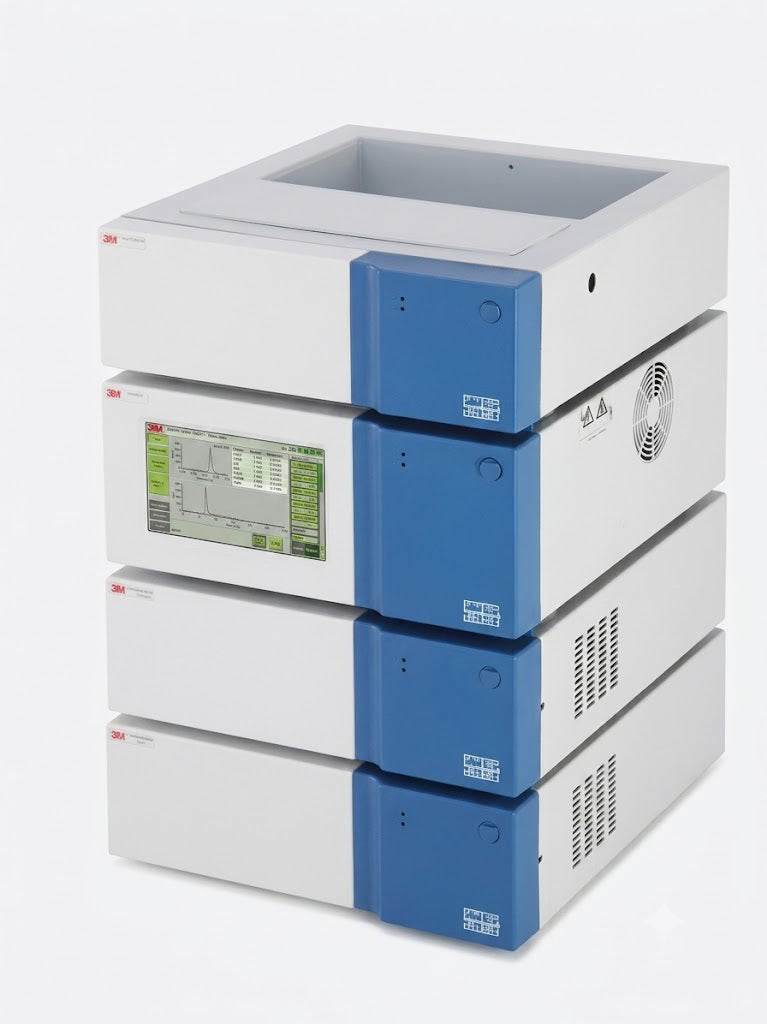

LC210 HPLC System — High-Performance Liquid Chromatography Platform

LC210 HPLC System — High-Performance Liquid Chromatography Platform

The LC210 HPLC System is a high-performance liquid chromatography platform built around a stable reciprocating series-flow constant-flow pump, a PID-controlled column thermostat, and a UV detector, operated through a 7" color touchscreen with built-in workstation software. Available in a single-pump configuration for high-precision isocratic delivery, or a dual-pump configuration that adds binary high-pressure gradient elution with in-line mixing for uniform mobile-phase blending.

Key Features

• High-sensitivity detector with a fluid-dynamics-optimized heat-dissipation channel and a thermally isolated, insulated design that suppresses the effect of ambient temperature swings, plus strong electromagnetic shielding
• Highly integrated microprocessor and multi-bus architecture, low-drift low-noise high-sensitivity preamplifier, 24-bit precision A/D conversion
• Stable-flow reciprocating series constant-flow pump rated for high pressure, easy to maintain; a high-performance buffer smooths pulsation for precise, stable flow — supports high-precision isocratic delivery, or binary high-pressure gradient elution with a mixer for uniform blending of different mobile phases
• Key wear parts (e.g. plunger rod) support in-line cleaning to extend seal life; process-control monitoring flags blockages and leaks
• 7" color touchscreen with built-in workstation software (audit-trail capability available as an add-on), bidirectional operation
• Precision-machined on CNC equipment for consistent build quality, with imported core components and accessories
• Long-life imported deuterium lamp with a dedicated lamp power supply; modular flow-cell design for easy disassembly and cleaning; manual or automatic injector available
• Time-programmed wavelength detection
• PID auto-tuning algorithm for precise column-oven temperature control

System Configuration

Column Thermostat: Control accuracy ±1°C; range ambient+10°C to 80°C (1°C increments); temperature stability ≤0.2°C

High-Pressure Pump: Flow-rate setting range 0.001–9.999 mL/min; flow stability ≤0.3%; maximum output pressure 45 MPa

UV Detector: Wavelength range 190–700 nm; wavelength accuracy ±1 nm; wavelength repeatability ≤0.2 nm

Baseline Noise: ≤5×10⁻⁶ AU (254 nm, empty cell); ≤9×10⁻⁶ AU (254 nm, methanol mobile phase)

Baseline Drift: ≤5×10⁻⁵ AU/h (254 nm, empty cell); ≤1×10⁻⁴ AU/h (254 nm, methanol mobile phase)

Minimum Detectable Concentration: ≤5×10⁻⁹ g/mL (sample: naphthalene; carrier: methanol; 254 nm)

Repeatability: Qualitative ≤0.3% (manual injection); Quantitative ≤0.9% (manual injection)

Power: 220V±22V, 50Hz±0.5Hz, 400W

Certifications

CE certified.

---

Frequently Asked Questions

Q: What's the difference between the single-pump and dual-pump LC210?

A: The single-pump configuration runs high-precision isocratic delivery. The dual-pump configuration adds a second pump for binary high-pressure gradient elution, with an in-line mixer for uniform blending of different mobile phases. Contact us to discuss which configuration fits your method.

Q: What injector options are available?

A: The LC210 supports either a manual injector or an automatic injector, selectable based on your lab's throughput needs. Contact us for configuration options.

Q: Does the LC210 support audit trail functionality?

A: The built-in workstation software supports 7" touchscreen bidirectional operation, with audit-trail capability available as an add-on. Contact us to discuss documentation for your regulatory environment.
