Accelerated Disintegration Testing: Methods, Instruments, and What USP <701> Actually Requires

The term "accelerated disintegration testing" appears regularly in stability study protocols, but it covers two distinct concepts that are frequently conflated — with real consequences for method validation and instrument selection.

This article separates the two meanings, clarifies what USP <701> actually governs, and identifies the instrument specifications that matter for each use case. For labs evaluating the LB-2D Disintegration Tester or the LB-3D Intelligent Disintegration Tester, the decision framework below maps directly to your regulatory environment and testing throughput.

Two Meanings of "Accelerated Disintegration Testing"

Meaning 1: Accelerated stability testing that includes disintegration as a measured attribute

Under ICH Q1A(R2), accelerated stability studies subject dosage forms to stress conditions (typically 40°C/75% RH for 6 months) to predict long-term product behavior. Disintegration time is one of the physical attributes tracked across stability time points — alongside hardness, friability, dissolution, and appearance.

In this context, "accelerated disintegration testing" means: run a standard USP <701> disintegration test on samples pulled from an accelerated stability chamber, then compare results to T0. If disintegration time increases beyond the acceptance criterion (typically the same limit as the release specification), this signals a formulation or packaging integrity issue.

Meaning 2: Modified disintegration conditions designed to stress-test the tablet

Some R&D labs use elevated temperature or modified media conditions during the disintegration test itself to accelerate failure mechanisms — helping predict how a formulation will behave after prolonged storage. This approach is not part of standard USP <701> methodology but appears in feasibility and formulation development work.

Understanding which meaning your protocol intends determines which instrument specifications are relevant.

What USP <701> Actually Governs

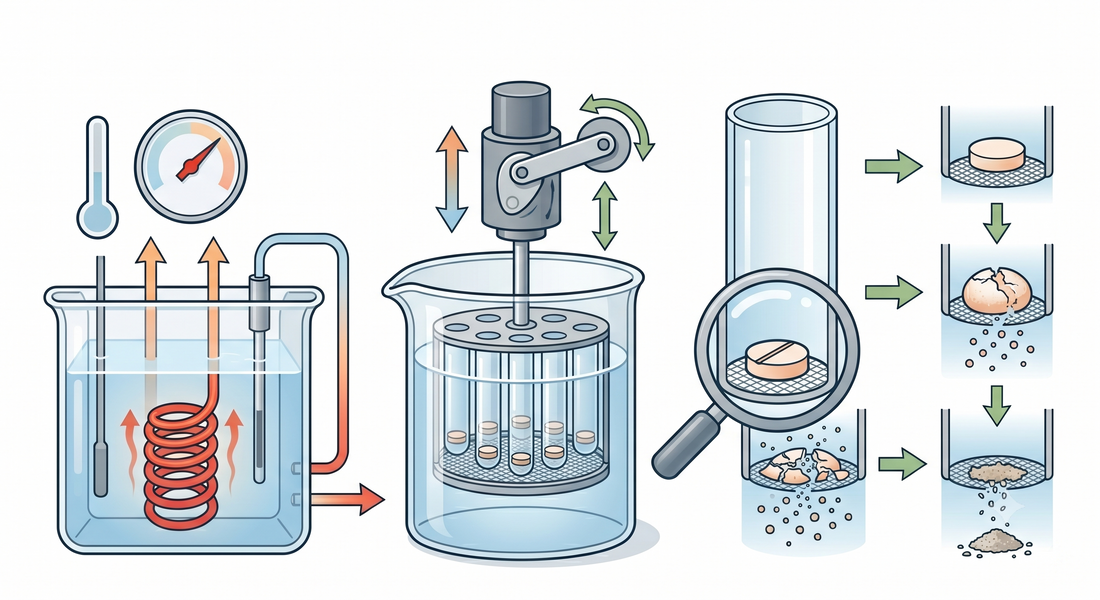

USP <701> is the standard disintegration test — it specifies the apparatus design, test media temperature (37°C ± 2°C for most tablets), and the pass/fail criterion (complete disintegration within the specified time, with no residue remaining on the mesh).

Key parameters under USP <701>:
- Temperature: 37°C ± 2°C for uncoated tablets; same for most enteric-coated tablets in the second stage (phosphate buffer, pH 6.8)
- Stroke rate: 29–32 cycles/minute for the standard apparatus
- Disintegration time limits: Varies by dosage form — uncoated tablets typically 30 minutes, enteric-coated tablets 60 minutes in phosphate buffer after passing the acid stage
- Mesh size: #10 mesh (2.0 mm aperture) standard; smaller apertures for specific dosage forms

The test is pass/fail at the specified limit, not a continuous measurement. This is important for instrument selection: you do not need a tester that generates a dissolution-style time-course curve — you need one that reliably terminates the run at the correct endpoint and records pass/fail with traceability.

Instrument Selection: LB-2D vs. LB-3D

The choice between the LB-2D Disintegration Tester and the LB-3D Intelligent Disintegration Tester comes down to three operational factors: throughput requirements, data integrity obligations, and regulatory environment.

LB-2D: Two Stations, Touchscreen Interface

The LB-2D is a 2-station tester with touchscreen control. Two stations means two baskets running simultaneously — sufficient for labs where disintegration testing is one of several QC tests run sequentially on the same batch, with no need to parallel-process multiple batches simultaneously.

The touchscreen interface provides operational convenience without the added cost of data management infrastructure. For R&D labs, smaller CROs, and development-phase environments where disintegration testing does not require a formal audit trail, the LB-2D covers the pharmacopoeial test requirement at a practical cost point.

Use LB-2D when:
- Disintegration testing volume is low to moderate (fewer than 5 batches/day)
- You're in a pre-GMP or development environment where formal data output isn't required
- Budget constraints make the higher cost of LB-3D difficult to justify at current testing volumes

LB-3D: Three Stations, Audit Trail and Data Management

The LB-3D adds a third station and, critically, a built-in audit trail and data management system. These are not cosmetic upgrades — they represent a different regulatory tier.

Three stations: The additional station matters when testing enteric-coated tablets, which require a two-stage test (acid stage + buffer stage). With a 3-station tester, you can run the acid stage on stations 1–2 while station 3 is already in the buffer stage for the previous batch. With a 2-station tester, you run each stage sequentially, doubling the time-per-batch for enteric coatings.

Audit trail: Under ALCOA+ data integrity principles, every QC result requires contemporaneous recording with operator identification, date/time stamp, and protection against backdating. The LB-3D's data management system captures this automatically. For GMP release testing environments, this is a baseline requirement — not an optional upgrade.

Regulatory environment: If your facility is subject to FDA, MHRA, or EU GMP inspection, audit trail capability on QC instruments is expected. The LB-2D's touchscreen-only interface does not provide this capability.

Decision Framework

Criterion	LB-2D	LB-3D
Station count	2	3
Data output	No	Yes
Audit trail	No	Yes
Enteric coating throughput	Sequential (slower)	Parallel (faster)
Environment	R&D / pre-GMP	GMP release / regulated QC
Best for:	Development labs, small CROs, pre-GMP environments	GMP release testing, FDA/MHRA-inspected facilities, enteric-coated tablet lines

For Accelerated Stability Protocols: What the Instrument Must Deliver

When disintegration testing is part of an ICH Q1A(R2) accelerated stability protocol, the instrument must:

1. Reproduce the exact conditions of the release specification test — the same temperature (37°C ± 2°C), same stroke rate, same media. A stability time-point test that uses different conditions from the release method creates an apples-to-oranges comparison that regulators will question.

2. Generate traceable results with timestamp — stability protocols require a chain of evidence linking each time-point sample to its test result, operator, and test date. Manual recording is not compatible with this requirement in regulated environments.

3. Support method verification between operators — inter-operator reproducibility is critical for stability data. Consistent temperature control and stroke rate across operators requires an instrument that locks these parameters, not one where operators set them manually each run.

The LB-3D's data management capability addresses all three requirements. The LB-2D addresses item 1 only.

The SY-6DN Option: When Disintegration Is One of Four QC Tests

For labs running all four standard tablet QC tests — dissolution, disintegration, hardness, and friability — on moderate volumes, the SY-6DN 4-in-1 Intelligent Tester consolidates the disintegration function into a single platform. The disintegration module within the SY-6DN is a 2-station configuration (matching LB-2D throughput), sufficient for labs where testing volume doesn't justify four dedicated instruments.

The SY-6DN is not a replacement for the LB-3D in high-throughput GMP environments. It is a practical consolidation for labs where each test type occurs at low-to-moderate frequency.

Frequently Asked Questions

Q: What are the disintegration time limits under USP <701> for different dosage forms?
A: USP <701> specifies limits by dosage form, not by a single universal cutoff. Uncoated tablets must disintegrate within 30 minutes. Enteric-coated tablets must survive 1 hour in 0.1N HCl (acid stage, no disintegration allowed), then disintegrate within 60 minutes in phosphate buffer at pH 6.8 (buffer stage). Chewable tablets have no disintegration requirement under USP <701> — they are tested under separate criteria. The temperature for all standard stages is 37°C ± 2°C. For accelerated stability protocols, the same limits and conditions as the release specification apply — using different conditions at stability time points creates a data integrity problem regulators will flag.

Q: What is the core difference between the LB-2D and LB-3D, and which one supports GMP release testing?
A: The LB-2D is a 2-station disintegration tester with a touchscreen interface — it covers the pharmacopoeial test apparatus requirement but does not provide data output or audit trail capability. The LB-3D is a 3-station intelligent tester that adds built-in audit trail and data management. In GMP release testing environments subject to FDA, MHRA, or EU GMP inspection, audit trail capability is a baseline data integrity requirement under ALCOA+ principles. The LB-3D meets this requirement; the LB-2D does not. The third station also provides throughput advantages for enteric-coated tablets, which require a two-stage test. If your facility is regulated, the LB-3D is the appropriate instrument. Contact us at drugmachines.com/pages/contact to discuss your testing requirements.

Q: What instrument capabilities does an accelerated stability study require for disintegration testing?
A: An ICH Q1A(R2) accelerated stability protocol imposes three specific instrument requirements beyond basic pharmacopoeial compliance. First, the instrument must reproduce the exact conditions of the release method — same temperature, stroke rate, and media — so that stability time-point results are directly comparable to release data. Second, results must be traceable, with timestamps, operator identification, and protection against backdating; manual recording is not sufficient in regulated environments. Third, the instrument must produce consistent results across operators to enable inter-operator reproducibility assessment. The LB-3D's data management and audit trail capability addresses all three requirements. The LB-2D covers condition reproducibility only.

Q: Can the SY-6DN's disintegration module replace a dedicated LB-3D for GMP batch release?
A: The SY-6DN is a 4-in-1 tester that combines dissolution, disintegration, hardness, and friability testing in one platform — the disintegration module operates at 2-station capacity, equivalent to the LB-2D. It is designed for labs testing moderate volumes across all four QC parameters, where four dedicated instruments are not justified. The SY-6DN does not replicate the LB-3D's 3-station throughput or its audit trail and data management capabilities. For GMP batch release environments — particularly those testing enteric-coated tablets or operating under FDA/MHRA inspection — the LB-3D remains the correct dedicated choice. The SY-6DN is best evaluated as a consolidation tool for development-phase or low-volume regulated labs, not as a substitute for the LB-3D in high-throughput GMP settings.

Conclusion

For labs building or auditing a disintegration testing program, the instrument choice is not a budget question — it is a regulatory positioning question. The LB-2D covers the pharmacopoeial apparatus requirement and is the right fit for development and pre-GMP environments. The LB-3D covers the same pharmacopoeial requirement and adds the data integrity infrastructure that regulated QC operations require. For labs running ICH Q1A(R2) accelerated stability programs in regulated environments, the LB-3D is not optional — the traceable, operator-attributed, timestamp-locked records it generates are what distinguishes defensible stability data from data that will draw inspector questions.

Explore the LB-3D Intelligent Disintegration Tester →

For details on our IQ/OQ/PQ certification suite and FDA compliance credentials, see our Certifications & Compliance page.
