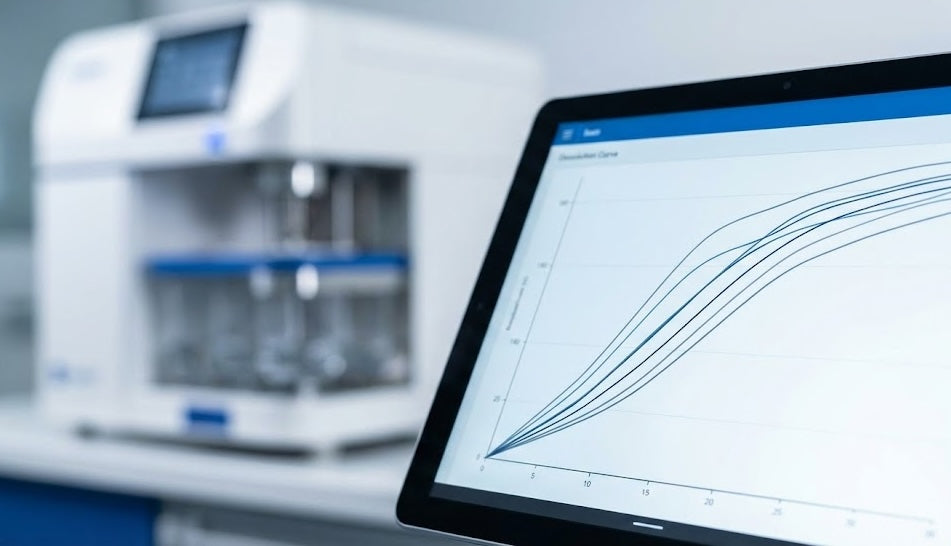

Automating the Lab: A Look at the RCZ-QY12 Sampling System

Dissolution testing is the gold standard for predicting drug release, but manual sampling is a bottleneck. It is labor-intensive, time-sensitive, and prone to human error. For high-volume pharmaceutical labs, the solution lies in automation. Enter the RCZ-QY12 Automatic Sampling System.

The Problem with Manual Sampling

In a standard dissolution test (e.g., USP Apparatus 1 or 2), samples must be withdrawn at specific time points (e.g., 15, 30, 45, 60 minutes).

• Timing Errors: Missing a time point by even 30 seconds can skew release profiles.
• Hydrodynamic Disturbance: Manual dipping of cannulas can disturb media flow.
• Filtration Inconsistency: Variation in filter pressure affects results.

The Solution: RCZ-QY12 Automation

The RCZ-QY12 is a high-precision, 12-channel sampling module designed to integrate seamlessly with Huanghai dissolution testers (like the RCZ-12A).

Key Features

• High-Precision Syringe Pumps: Unlike peristaltic pumps that require frequent tubing calibration, the RCZ-QY12 uses imported syringe pumps for absolute volume accuracy (≤±1%).
• 12-Channel Efficiency: Simultaneously samples from 12 vessels, doubling the throughput of standard 6-channel systems.
• Automated Filtration: Features a built-in secondary filtration system (optional online filter membrane) to prevent tubing blockage and ensure clear HPLC samples.
• Data Integrity: Automatically logs sampling time, volume, and media replenishment, fully compliant with audit trail requirements.

Companion: The Critical Role of Degassing

Automation solves sampling timing, but it cannot fix issues with the media itself. Air bubbles in dissolution media can adhere to dosage forms, altering disintegration and dissolution rates.

• The Huanghai Solution: The HTQ1A Vacuum Degasser removes dissolved gases before the test begins, ensuring that your automated sampling data reflects the true drug performance, not bubble interference.

How It Works

1. Program: Set sampling intervals (e.g., every 5 mins) on the touchscreen.
2. Withdraw: The Z-arm lowers probes to the exact USP-specified zone (midway between surface and paddle).
3. Filter & Dispense: Media is withdrawn, filtered, and dispensed directly into HPLC vials.
4. Replenish: (Optional) Fresh media is added back to vessels to maintain sink conditions.
5. Wash: System auto-cleans lines between points to prevent cross-contamination.

Why Upgrade?

For labs running dozens of batches per week, the RCZ-QY12 pays for itself by releasing analysts from "babysitting" water baths. It turns a manual, error-prone chore into a "set and forget" validated process.

Technical Spec Highlight:
• Channels: 12
• Volume Accuracy: ≤±1%
• Sampling Interval: ≥1 min
• Price: ~$48,154 (Significant savings vs European competitors)

Data Integrity Note: Our lab instruments (e.g., LB-3D, SY-6DN, RCZ series) support basic audit trails strictly per USP/ChP standards. They do NOT fully comply with FDA 21 CFR Part 11 regarding absolute "electronic records immutability" (data can be modified for R&D flexibility).

Conclusion

Automation isn't just about speed; it's about confidence in your data. The RCZ-QY12 brings global-standard precision to your dissolution workflow.

---

Frequently Asked Questions

Q: What pharmacopoeial standard governs dissolution testing?

A: Dissolution testing is governed by USP <711> (United States Pharmacopeia), ChP 0931 (Chinese Pharmacopoeia), and Ph.Eur. 2.9.3 (European Pharmacopoeia). All Huanghai RCZ-series dissolution testers are designed to comply with USP <711> paddle and basket methods, meeting the ±0.5 rpm speed tolerance and ±0.5°C temperature control requirements. For international market access, verify which pharmacopoeia your target regulatory body recognizes.

Q: How many dissolution channels do I need for a QC lab?

A: Channel selection depends on your batch size and testing throughput. A 6-channel tester (RCZ-6N) suits small-volume labs running one formulation at a time. An 8-channel tester (RCZ-8A) accommodates USP <711> 6-vessel runs with 2 spares. A 12-channel tester (RCZ-12A) is ideal for high-throughput labs running two products simultaneously. As a rule: choose at minimum 8 channels for routine QC; upgrade to 12 if you have more than 3 active products in QC testing. Contact us for pricing.

Q: What is the difference between syringe pump and peristaltic pump in automated sampling?

A: Syringe pumps (used in Huanghai RCZ-QY series) deliver precise, pulsation-free sample withdrawal—critical for viscous media or flow-sensitive APIs. Peristaltic pumps are lower cost but introduce pulsation artifacts that can affect UV absorbance readings in inline detection. For validated methods submitted to regulatory agencies, syringe-pump systems such as the RCZ-QY12 are preferred because they demonstrate superior reproducibility in audit-trail-backed data.

Q: Does the dissolution tester support FDA 21 CFR Part 11 compliance?

A: Huanghai intelligent dissolution testers (RCZ-8N, RCZ-12A, RCZ-QY series) include audit trail functionality—timestamped records of all parameter changes and operator actions—meeting basic USP and ChP audit trail requirements. However, they are not certified as fully 21 CFR Part 11 compliant because certain parameters remain modifiable for R&D flexibility. For FDA-regulated QC environments, pair the instrument with a validated LIMS or laboratory software stack to achieve full Part 11 compliance. Contact us to discuss compliance configuration for your specific regulatory submission.

Q: How often should dissolution media be degassed before testing?

A: USP <711> recommends degassing dissolution media immediately before use to remove dissolved oxygen that can cause bubble formation on tablet surfaces—leading to false-low dissolution results. Best practice: degas each media batch within 30 minutes of testing. The HTQ-1A Vacuum Degasser processes up to 25 liters in a single cycle using vacuum + UV sterilization, eliminating microbial contamination risk. For labs running 8–12 channel testers, a dedicated degasser prevents throughput bottlenecks between runs.
