Why Degassing Comes First: The Bubble Effect in Dissolution Testing and the HTQ-1A Solution

Dissolution testing is only as reliable as the medium carrying it. Before a single tablet drops into a vessel, the dissolution medium itself may already be compromised — saturated with dissolved gases that nucleate into bubbles the moment temperature rises to 37 °C. These bubbles do not merely look inconvenient. They physically alter the release profile of your dosage form, producing data that no statistical treatment can repair. The HTQ-1A Vacuum Degasser addresses this problem at the source.

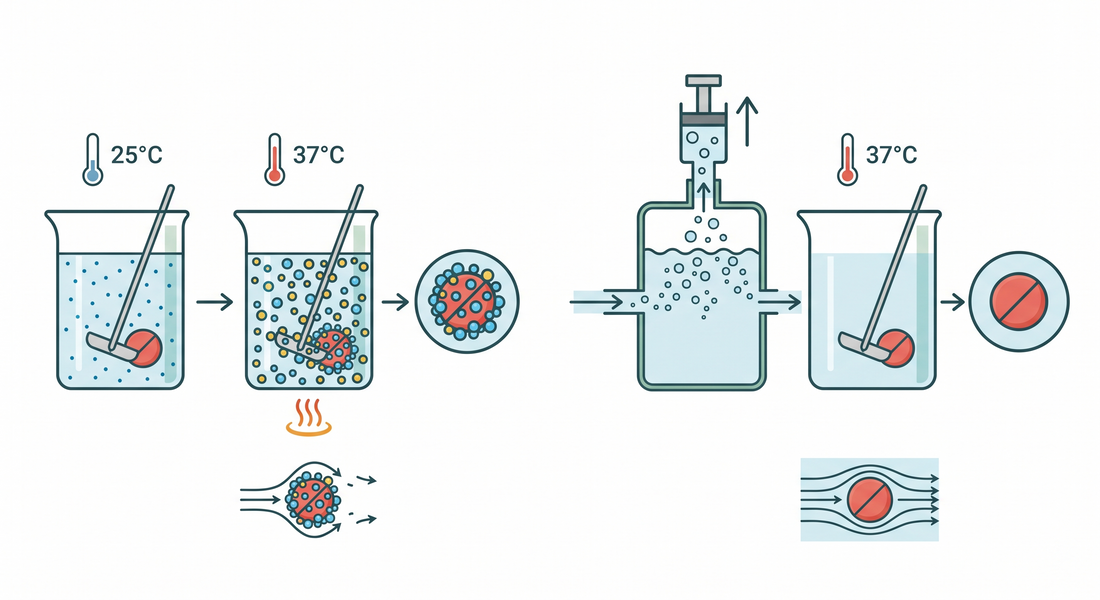

The Invisible Problem: How Dissolved Gas Becomes a Measurement Error

Water at room temperature holds a measurable quantity of dissolved oxygen and other gases. As the dissolution bath heats the medium to 37 °C, solubility drops and those gases come out of solution. The result is a cascade of micro-bubbles that attach to:

• Dosage form surfaces — acting as a physical barrier between the dissolving matrix and the medium, reducing effective surface area and slowing release
• Basket screens and paddle shafts — locally disrupting the hydrodynamic boundary layer that USP and Ph.Eur. apparatus specifications assume to be uniform
• Vessel walls and sensor probes — interfering with spectrophotometric and fiber-optic in-line measurements

The consequence is a dissolution curve that does not reflect the true release kinetics of your product. In batch release testing, this is an OOS result of instrumental origin — invisible in the data, untraceable to the root cause without a systematic degassing protocol. The European Pharmacopoeia (Ph.Eur. 2.9.3) explicitly addresses this issue, requiring dissolution media to be degassed when the procedure mandates it, precisely because bubbles are a known, quantifiable source of variability.

Three Degassing Methods Compared

Laboratories facing the bubble problem have historically relied on three approaches, each with meaningful trade-offs:

Method	How It Works	Key Limitation
Heating	Media raised to ~41 °C to drive out gas before cooling to 37 °C	Temperature overshoot risks degrading thermolabile compounds; adds preparation time
Ultrasonic	High-frequency vibration dislodges dissolved gas	Mechanical energy can degrade sensitive APIs; no guarantee of complete removal
Vacuum degassing	Reduced pressure causes dissolved gas to expand and escape	Requires dedicated equipment; gold standard per Ph.Eur.

Vacuum degassing is the only method that removes dissolved gas without introducing thermal or mechanical stress to the medium. It is the approach aligned with pharmacopeial intent and is the operating principle of the HTQ-1A.

How the HTQ-1A Works

The HTQ-1A is an online vacuum degasser — meaning it degasses the dissolution medium continuously as it flows into the dissolution bath, without requiring the operator to stop, prepare, and transfer pre-treated media in a separate vessel.

Key specifications confirmed from the knowledge base:

• Tank capacity: 25 L mobile stainless tank, sufficient for a full day's multi-vessel testing
• Vacuum range: −0.08 to 0 MPa, providing controlled sub-atmospheric pressure that reliably removes dissolved oxygen and CO₂
• UV sterilization: Integrated UV unit treats media as it passes through, reducing microbial contamination risk in aqueous dissolution media stored overnight
• Noise level: Engineered for low acoustic output, appropriate for open analytical laboratory environments
• High efficiency: Continuous-flow design ensures consistent degassing output without batch-by-batch manual treatment

The mobile tank design means the HTQ-1A can be repositioned to serve multiple dissolution baths across a laboratory, reducing the per-instrument cost of maintaining degassed media supply.

Why Online Degassing Matters: Not Interrupting the Test

Pre-batch degassing in a separate container creates a well-documented secondary problem: re-gassing. Once degassed media is transferred, poured, or held in an open vessel, atmospheric gases begin dissolving back in. At 37 °C bath temperature, re-gassing begins within minutes of exposure.

The HTQ-1A's online design eliminates this re-gassing window by:

• Maintaining the medium under controlled conditions from tank to vessel
• Delivering freshly degassed media at the point of use
• Eliminating the manual transfer step that introduces both re-gassing and variability in operator technique

For regulated QC laboratories running 12-vessel dissolution systems such as the RCZ-12A Intelligent Dissolution Tester, the HTQ-1A integrates directly into the media supply workflow, ensuring all 12 vessels receive consistently degassed medium without any interruption to the test sequence.

The Ph.Eur. Requirement: Degassing Is Not Optional

The European Pharmacopoeia's general method 2.9.3 specifies that "the medium must be free from dissolved gases" in procedures where gassing could affect results. This is not advisory language — it defines the boundary of method validity. Running a Ph.Eur.-referenced method without a validated degassing step means the test is not being performed to specification.

For pharmaceutical manufacturers exporting to European markets, or operating under ICH Q2(R1) method validation principles, the absence of a documented, equipment-based degassing procedure creates a gap that auditors will identify. The HTQ-1A, as a dedicated vacuum degasser, provides the hardware foundation for a defensible, instrument-based degassing SOP.

Conclusion

Dissolution testing accuracy begins before the run starts. Dissolved gas in the medium is a physical interference, not a statistical outlier, and it cannot be corrected after the fact. The HTQ-1A Vacuum Degasser — 25 L mobile tank, −0.08 to 0 MPa vacuum range, integrated UV sterilization, online continuous delivery — removes the bubble effect from the equation permanently.
