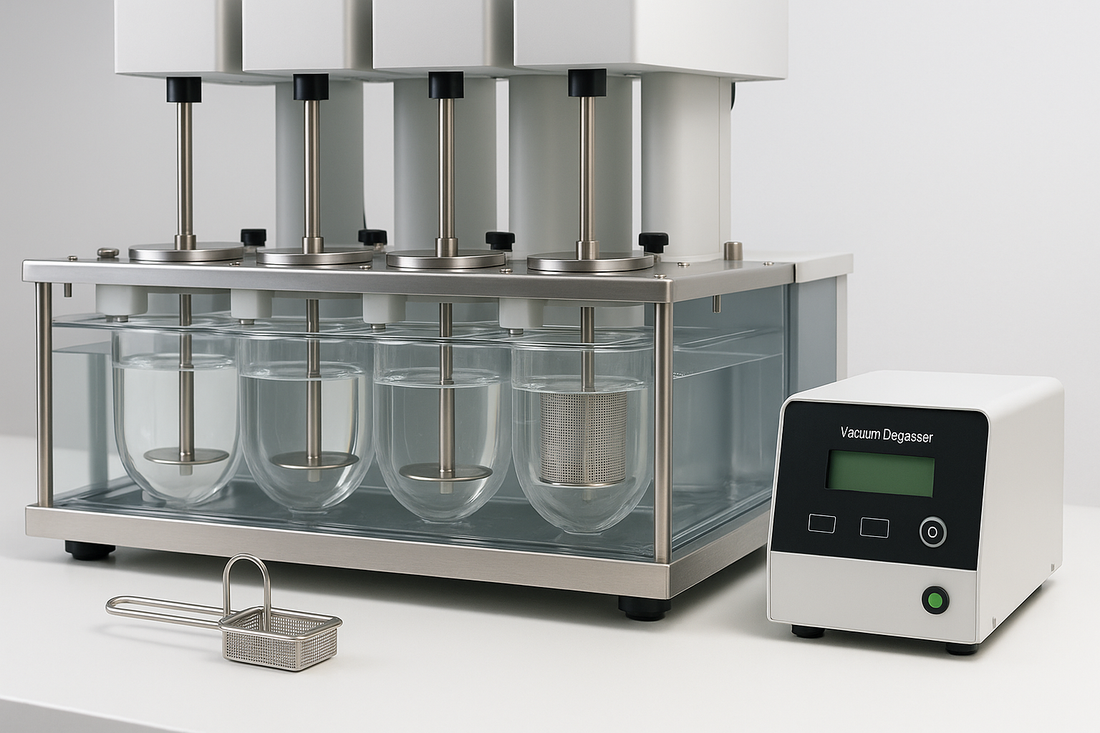

How to Choose a Dissolution Apparatus: When to Use USP 1/2/5/7 and How to Transfer Methods
Share
Selecting the right dissolution apparatus directly affects repeatability and registration consistency. Use a “scenario–variables–validation” approach to match USP 1/2/5/7 to your dosage form and prepare robust evidence for method transfer.
Where selection goes wrong
- Using the “most common” apparatus instead of the best-matched one—ignoring floating/aggregation or adhesion behavior.
- Tweaking only speed and medium while overlooking filtration, sampling position, and temperature control—sources of systematic bias.
- Judging transfer by similar curves alone, without defining an SST (system suitability) window and operating limits.
- Inconsistent media prep (deaeration, preheat, hold time) causing early-time variability.
Variables to lock before you choose
- Dosage behavior: propensity to float/aggregate, risk of sticking, need for multi-stage media.
- Hydrodynamics & mechanics: basket vs. paddle shear; reciprocation stroke consistency (USP 7).
- Medium & sampling: deaeration method, sampling point, filtration path—especially for early time points.
- Thermal control & records: medium prep, sampling timestamps, SST criteria, and deviation limits.
HUANGHAI’s selection & transfer recommendations
- Anchor on your dosage and registration pathway: pick the apparatus first, then back-calculate medium, speed/stroke, and sampling logic.
- Standardize media preparation with vacuum deaeration, preheat, and hold time—write it into SOPs.
- Build an auditable method file and SST: define sampling location, filtration conditions, temperature control, and equivalence ranges.
Conclusion
There is no “universal” apparatus—only a better match. Define the variable window and SST first, then finalize apparatus and workflow to improve transferability across sites.
Related products
Frequently Asked Questions
Q: What pharmacopoeial standard governs dissolution testing?
A: Dissolution testing is governed by USP <711> (United States Pharmacopeia), ChP 0931 (Chinese Pharmacopoeia), and Ph.Eur. 2.9.3 (European Pharmacopoeia). All Huanghai RCZ-series dissolution testers are designed to comply with USP <711> paddle and basket methods, meeting the ±0.5 rpm speed tolerance and ±0.5°C temperature control requirements. For international market access, verify which pharmacopoeia your target regulatory body recognizes.
Q: How many dissolution channels do I need for a QC lab?
A: Channel selection depends on your batch size and testing throughput. A 6-channel tester (RCZ-6N) suits small-volume labs running one formulation at a time. An 8-channel tester (RCZ-8A) accommodates USP <711> 6-vessel runs with 2 spares. A 12-channel tester (RCZ-12A) is ideal for high-throughput labs running two products simultaneously. As a rule: choose at minimum 8 channels for routine QC; upgrade to 12 if you have more than 3 active products in QC testing. Contact us for pricing.
Q: What is the difference between syringe pump and peristaltic pump in automated sampling?
A: Syringe pumps (used in Huanghai RCZ-QY series) deliver precise, pulsation-free sample withdrawal—critical for viscous media or flow-sensitive APIs. Peristaltic pumps are lower cost but introduce pulsation artifacts that can affect UV absorbance readings in inline detection. For validated methods submitted to regulatory agencies, syringe-pump systems such as the RCZ-QY12 are preferred because they demonstrate superior reproducibility in audit-trail-backed data.
Q: Does the dissolution tester support FDA 21 CFR Part 11 compliance?
A: Huanghai intelligent dissolution testers (RCZ-8N, RCZ-12A, RCZ-QY series) include audit trail functionality—timestamped records of all parameter changes and operator actions—meeting basic USP and ChP audit trail requirements. However, they are not certified as fully 21 CFR Part 11 compliant because certain parameters remain modifiable for R&D flexibility. For FDA-regulated QC environments, pair the instrument with a validated LIMS or laboratory software stack to achieve full Part 11 compliance. Contact us to discuss compliance configuration for your specific regulatory submission.
Q: How often should dissolution media be degassed before testing?
A: USP <711> recommends degassing dissolution media immediately before use to remove dissolved oxygen that can cause bubble formation on tablet surfaces—leading to false-low dissolution results. Best practice: degas each media batch within 30 minutes of testing. The HTQ-1A Vacuum Degasser processes up to 25 liters in a single cycle using vacuum + UV sterilization, eliminating microbial contamination risk. For labs running 8–12 channel testers, a dedicated degasser prevents throughput bottlenecks between runs.
