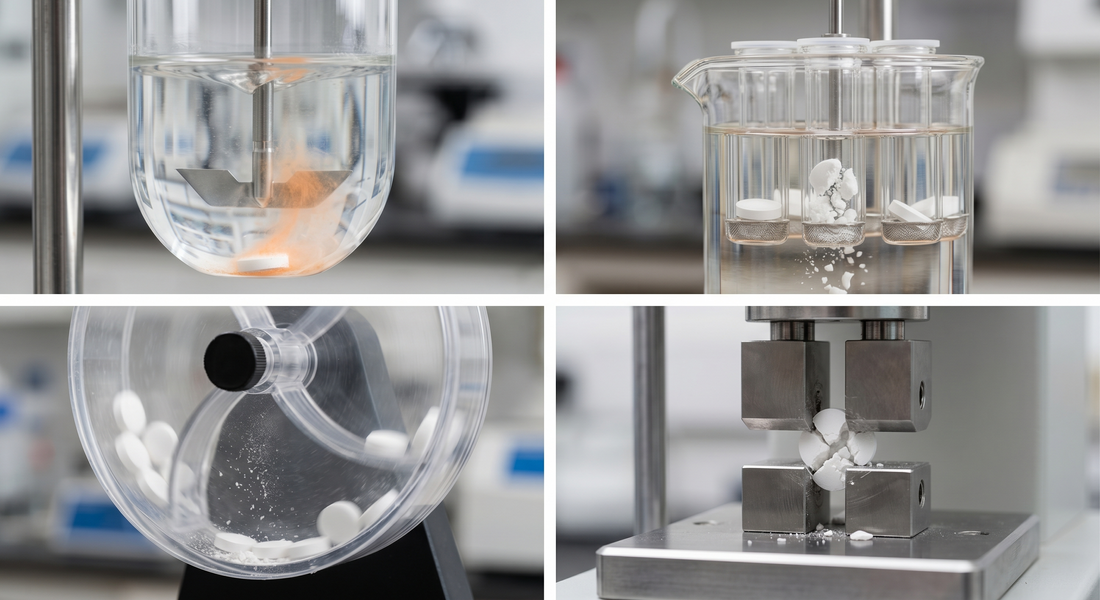

Complete Pharma QC Lab Setup Guide: Dissolution, Disintegration, Friability & Hardness Testers
Share
A pharmaceutical QC lab is not built once and left unchanged. Instrument selection decisions made during R&D propagate forward — correct choices accelerate regulatory submission; incorrect ones create validation debt that compounds at every scale-up. The four physical testing categories covered in this guide — dissolution, disintegration, friability, and hardness — are individually mandated by USP, Ph. Eur., and ChP pharmacopoeias, and collectively determine batch release confidence.
For labs evaluating a consolidated approach, the Huanghai SY-6DN Intelligent 4-in-1 Tester integrates all four functions on a single platform. Whether you build a modular fleet or a consolidated system, the selection logic below applies.
Why Physical Testing Cannot Be Addressed Piecemeal
Each of the four testing categories captures a different aspect of tablet quality. They are not interchangeable, and no single result substitutes for another:
- Dissolution (USP <711>, ChP 0931): Measures API release rate under simulated physiological conditions. The primary predictor of in vivo bioavailability for solid oral dosage forms.
- Disintegration (USP <701>, ChP 0921): Confirms the tablet breaks apart within a specified timeframe. A necessary but insufficient proxy for dissolution — disintegration compliance does not guarantee appropriate API release.
- Friability (USP <1216>): Measures mechanical durability — resistance to chipping and abrasion during coating, packaging, and transport. Acceptance criterion under USP <1216>: ≤1.0% weight loss after 100 drum rotations at 25 ± 1 RPM.
- Hardness (USP <1217>): Measures crushing force. An in-process control parameter linking compression settings to downstream dissolution and disintegration performance.
A QC lab missing any of these four capabilities has a regulatory gap, regardless of how the other instruments are specified.
For a full overview of the certifications and compliance standards our equipment meets, see our Certifications & Compliance page.
The Five Core Instruments and Their Distinct Roles
1. Dissolution Tester
The dissolution tester is typically the highest-capital and highest-complexity instrument in a physical testing suite. Key selection parameters:
- Apparatus type: USP <711> defines Apparatus 1 (basket) for capsules and coated forms, Apparatus 2 (paddle) as the default for most tablets, Apparatus 3 (reciprocating cylinder) for extended-release beads, and Apparatus 7 (reciprocating holder) for transdermal patches.
- Vessel count: 6 vessels support standard single-formulation testing; 8 or 12 vessels are required for simultaneous multi-point or multi-formulation studies.
- Temperature uniformity: USP requires ±0.5°C across all vessels during operation — not just at setpoint.
- Audit trail: For GxP-regulated environments, the dissolution system must record all parameter changes, operator actions, and result data.
Huanghai RCZ series options: RCZ-6N (6-ch), RCZ-8N (8-ch), and the premium RCZ-8A (8-ch) and RCZ-12A (12-ch) models which both feature separate stirring systems and automatic tablet droppers. For automated sampling: RCZ-QY12 (12-ch with high-precision imported sampling pumps).
All Intelligent RCZ series instruments (RCZ-6N and above) support basic audit trails per USP/ChP standards.
2. Disintegration Tester
The disintegration tester is a simpler instrument than dissolution, but its role in regulated QC is non-negotiable. Selection criteria:
- Station count: 2-station instruments (LB-2D) serve standard testing; 3-station (LB-3D) enables parallel testing of different formulations or batches.
- Temperature stability: Must maintain 37°C ± 1°C (or temperature specified in monograph) throughout the test cycle.
- Acceptance criteria reference: USP <701> — uncoated tablets ≤30 min; film-coated ≤60 min; enteric-coated per individual monograph.
- Data management: GxP environments require audit trail capability. The LB-3D provides integrated data management and audit trail; the LB-2D is touchscreen-equipped but serves pre-GxP and development stages.
3. Tablet Friability Tester
USP <1216> specifies exact drum geometry: 283–291 mm diameter, 25 ± 1 RPM rotation speed, 4-minute test duration, 6.5 g or 20-tablet sample. The acceptance criterion — ≤1.0% weight loss — has no tolerance band. A result of 1.02% is a failed batch.
Important limitation of CJY-300E: The Huanghai CJY-300E Friability Tester is a visual-observation instrument. It has no data output and no print function. This is appropriate for development and non-GxP QC contexts, but labs requiring electronic records for batch release in regulated environments will need to supplement with a manual weighing and recording protocol or integrate the 4-in-1 SY-6DN, which provides unified data management.
4. Tablet Hardness Tester
Hardness testing under USP <1217> is an in-process control parameter measured during compression. The primary selection criterion is the force range required by your tablet formulation — not the lab stage. Different tablet types demand significantly different crushing force capacities:
- YPD-200C (10–200N): Manual operation, no data export. Suitable for standard small-to-medium tablets in development or non-GxP environments where electronic records are not required.
- YPD-350N (up to 350N): Diameter measurement, data export, and audit trail. The standard choice for regulated GMP environments with conventional tablet formats.
- YPD-500N (up to 500N): Intelligent hardness tester for labs working with larger tablets, bilayer tablets, or high-compression modified-release formulations that exceed the 350N range.
- YPD-700N (up to 700N, custom configuration): For specialized or high-hardness tablet formats that require extended force range. Available on request based on project specifications.
Selection logic: Start from your tablet's expected hardness range and work upward. Under-specifying the force range — buying a 200N tester for a tablet that tests at 180N — leaves no margin for formulation changes and will require instrument replacement at the worst possible time.
Decision Framework: Instrument Selection by Testing Requirements
For dissolution, disintegration, and friability, the key selection driver is production scale and regulatory environment. For hardness, the key driver is tablet force range. The table below reflects both dimensions:
| Instrument | Selection Driver | Entry Option | Standard GMP | High-Force / Complex Tablets |
|---|---|---|---|---|
| Dissolution | Scale & vessel count | RCZ-6N (6-ch) | RCZ-8A / RCZ-12A | RCZ-12A + RCZ-QY12 auto sampler |
| Disintegration | Scale & audit trail | LB-2D (2-station) | LB-3D (3-station, audit trail) | LB-3D |
| Friability | Regulatory environment | CJY-300E | CJY-300E + documented protocol | CJY-300E + documented protocol |
| Hardness | Force range required | YPD-200C (≤200N, standard tablets) | YPD-350N (≤350N, regulated GMP) | YPD-500N (≤500N) / YPD-700N (custom, ≤700N) |
The SY-6DN Alternative: Four Functions in One Platform
The SY-6DN Intelligent Tablet Multi-Purpose Tester integrates dissolution, disintegration, hardness, and friability testing in a single chassis with a unified data management system.
Specifications: - Dissolution: 6-vessel, Apparatus 1 and Apparatus 2 compatible - Disintegration: 2-station - Hardness: Full force range with data output - Friability: Integrated drum tester
Key advantage: A single 3-level permission management system and centralized audit trail reduce Software Validation (CSV) overhead compared to four separately validated systems. Footprint consolidation is significant in cleanrooms where bench space carries a high operational cost.
Where it fits: Labs seeking to minimize validation burden, reduce bench footprint, or phase QC investment — particularly applicable to CDMOs, generics manufacturers entering GMP production, and high-growth QC labs expanding from development to pilot scale.
What it does not measure: Tablet diameter or thickness. If dimensional QC is required, a separate gauge or automated vision system is needed.
Common Configuration Errors That Affect Regulatory Outcomes
1. Procuring dissolution testers without verifying temperature uniformity specifications. Entry-level dissolution testers frequently show cross-vessel temperature non-uniformity exceeding ±0.5°C. This error is systematic — every result generated under non-compliant conditions requires investigation at audit.
2. Omitting the vacuum degasser for oxygen-sensitive APIs. Dissolved oxygen in undegassed dissolution media is one of the most common sources of inter-laboratory dissolution variability. The HTQ-1A Vacuum Degasser removes dissolved gas prior to use; for oxidation-sensitive formulations, this step is not optional.
3. Selecting a 6-vessel dissolution tester when stability protocols require 8 or 12. Six vessels accommodate a single formulation set. An 8-point dissolution profile (0, 5, 10, 15, 20, 30, 45, 60 min) with duplicate vessels requires 16 vessels per run. Parallel batch testing compounds the throughput gap rapidly.
4. Assuming disintegration compliance implies dissolution compliance. USP <701> disintegration is a pass/fail screen; USP <711> dissolution is the quantitative bioavailability predictor. Disintegration within specification does not guarantee that API release rate meets the dissolution acceptance criterion.
5. Purchasing an instrument without confirming spare glassware availability. Vessel and basket breakage is routine in active dissolution labs. Post-purchase sourcing of compatible replacement glassware from the manufacturer is the most reliable path — confirm availability and lead time before purchase.
Frequently Asked Questions
Q: What is the minimum instrument set for a GMP-compliant physical testing lab? A: A complete GMP physical testing suite for solid oral dosage forms requires at minimum: a dissolution tester (USP <711> compliant, with audit trail), a disintegration tester (USP <701> compliant), a friability tester with documented weighing protocol (USP <1216>), and a hardness tester with data output (USP <1217>). The exact model selection within each category depends on vessel count requirements, station count, and whether the lab is operating under strict electronic records requirements. The SY-6DN consolidates all four functions; alternatively, each function can be addressed with a dedicated instrument from the RCZ, LB, CJY, and YPD series.
Q: What audit trail standards do Huanghai instruments support? A: Huanghai instruments, including the SY-6DN, support basic audit trails per USP and ChP standards. Data can be modified for R&D flexibility, which is intentional for development contexts but requires additional procedural controls in regulated GMP environments. For commercial GMP applications, consult your validation team on whether supplementary controls are needed to satisfy your site's data integrity requirements.
Q: When does a lab need automated dissolution sampling (RCZ-QY12) versus manual sampling? A: Manual sampling is practical at 500–1,000 dissolution runs per year with experienced operators. Above that threshold — or in labs running 8-point profiles on multiple formulations simultaneously — manual sampling introduces unacceptable inter-operator variability and sampling timing errors. The RCZ-QY12 (12-channel automated sampler with high-precision imported pumps) eliminates sampling timing as a variable and significantly reduces analyst time per run. The business case is strongest when dissolution testing represents a bottleneck in the batch release workflow.
Q: What is the difference between LB-2D and LB-3D disintegration testers? A: The LB-2D is a 2-station touchscreen disintegration tester suited for development and pre-GxP environments. The LB-3D is a 3-station intelligent disintegration tester with integrated audit trail and data management, designed for regulated GMP environments. The additional station enables parallel testing of two batches simultaneously. For regulated commercial production, the LB-3D is the appropriate instrument; the LB-2D serves as a cost-effective option for formulation development where electronic records are not yet required.
Q: How should a lab prioritize capital expenditure when building out sequentially? A: The sequencing that minimizes regulatory risk while deferring capital: (1) Dissolution tester with appropriate vessel count and audit trail — this is the highest-stakes instrument for batch release decisions and regulatory inspections; (2) Disintegration tester with audit trail capability; (3) Hardness tester with data output for in-process control; (4) Friability tester. The SY-6DN eliminates this sequencing decision by providing all four at a consolidated cost. Contact Huanghai for a lab configuration consultation based on your specific dosage form and regulatory context.
Conclusion
QC lab configuration is a decision made once that affects every batch release, regulatory inspection, and scale-up event thereafter. The four core testing functions — dissolution, disintegration, friability, and hardness — each address a distinct quality attribute, and no instrument substitutes for another. Instrument selection should be driven by pharmacopoeial requirements, vessel count projections, audit trail obligations, and realistic throughput estimates — not acquisition cost alone.
